Protecting the Clean Frontline of Life Sciences Research

In the demanding world of life sciences—from HEPA-filtered biopharmaceutical manufacturing to vaccine research and medical laboratory operations—air cleanliness is not optional, it's mission-critical. Contaminated air can compromise drug efficacy, invalidate experimental data, and pose serious biosafety risks. This case study demonstrates how Whalesens engineered a comprehensive biomedical air filtration system for a national-level vaccine research facility, achieving ISO 14644-1 Class 5 cleanliness standards while maintaining operational efficiency under 24/7 intensive use.

Industry Pain Points in Life Sciences Air Quality

High-precision medical and research environments face unique challenges that conventional HVAC systems cannot adequately address. Airborne contaminants—including particulate matter, microorganisms, viruses, and chemical aerosols—pose constant threats to critical operations.

⚠️

Critical Contamination Risks

✓

Sample Contamination Particles >0.3μm compromise experimental integrity

✓

Product Quality Failures Microbial contamination in pharmaceutical production

✓

Cross-Infection Hazards Airborne pathogen transmission between work zones

✓

Data Accuracy Issues Environmental variables affect sensitive test results

Traditional ventilation systems lack the precision filtration, real-time monitoring, and dynamic response capabilities required for biosafety level 3 (BSL-3) facilities and pharmaceutical clean rooms. This gap creates compliance risks, operational inefficiencies, and potential safety incidents.

Case Background: National Vaccine Research Center

A prestigious national-level vaccine research institution approached Whalesens during the construction phase of their new P3-level biosafety laboratory complex. The facility would handle infectious disease research, vaccine development, and clinical trial material production—all requiring the highest standards of environmental control.

Project Challenge: The facility needed to maintain stable air cleanliness during dynamic research activities—including frequent personnel movement, equipment operation, and material transfers—while meeting stringent regulatory requirements for both domestic and international pharmaceutical standards.

Whalesens Multi-Layer HEPA Filtration Solution

Our engineering team designed a comprehensive air purification system combining mechanical filtration, molecular adsorption, and intelligent monitoring. The solution addresses both particulate and gaseous contaminants while optimizing energy efficiency and maintenance intervals.

System Architecture Overview

The filtration system employs a cascading three-stage approach, each layer targeting specific contaminant categories to maximize efficiency and extend filter service life.

1

Primary Pre-Filter Layer

High-capacity coarse filters capture large particulates (hair, dust, textile fibers) and protect downstream HEPA modules from premature loading. This stage uses synthetic media with progressive density structure, achieving 85% efficiency at 10μm while maintaining low pressure drop (<30 Pa).

Benefit: Extends HEPA filter lifespan by 40-60%, reducing annual replacement costs

2

HEPA High-Efficiency Filtration Module (H13 Grade)

Medical-grade HEPA filters meeting EN 1822 H13 classification deliver ≥99.99% efficiency for 0.3μm particles at rated airflow. Each module features:

• Antimicrobial coating: Silver-ion treatment inhibits bacterial/fungal colonization on filter media
• Gel-seal construction: Eliminates bypass leakage common in gasket-sealed units
• Mini-pleat design: Maximizes surface area (65 sq ft per filter) for extended service life
• Low energy consumption: Final pressure drop <250 Pa at rated flow

Certification: Each filter individually tested and certified per ISO 29463 standards, with leak test report included

3

Activated Carbon Molecular Adsorption Layer

Specialty impregnated carbon media removes volatile organic compounds (VOCs), formaldehyde, and chemical odors from reagents and disinfectants. This stage protects personnel from low-level chemical exposure and prevents contamination of sensitive analytical equipment.

Performance: >95% removal of formaldehyde, benzene, and common laboratory solvents at residence time >0.1 seconds

Intelligent Monitoring and Control System

The filtration hardware integrates with a comprehensive building management system (BMS) providing real-time visibility into air quality and equipment status. This enables predictive maintenance and ensures continuous compliance documentation.

System Monitoring Capabilities

📊 Particle Counting

Six-channel laser particle counter monitors PM0.3 / PM0.5 / PM1.0 / PM2.5 / PM5.0 / PM10 concentrations with 1-minute data logging

🌡️ Environmental Sensors

Temperature (±0.2°C accuracy), relative humidity (±2% RH), and differential pressure monitoring across filtration stages

🔔 Predictive Alerts

Automatic notification when filter pressure drop reaches 80% of terminal value, enabling scheduled replacements before performance degradation

📈 Compliance Reporting

Automated generation of 21 CFR Part 11 compliant data logs for regulatory audits, with tamper-evident digital signatures

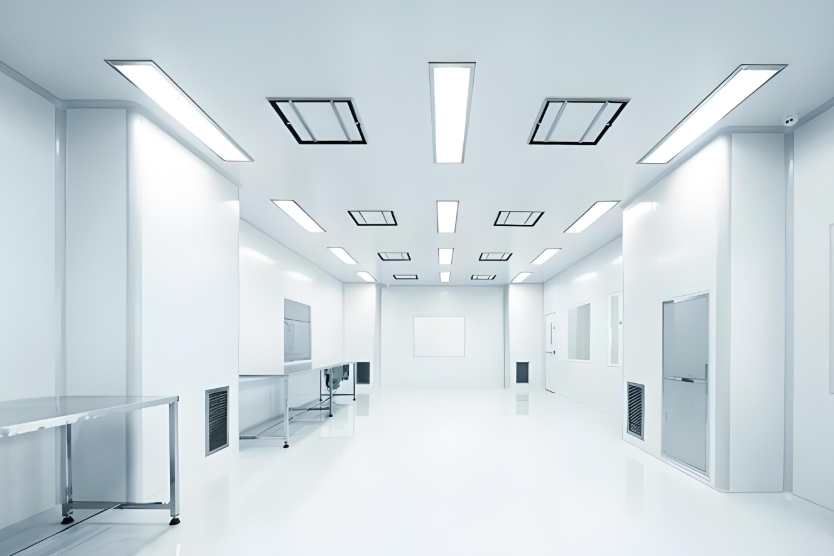

Figure 1: Whalesens multi-stage filtration system installed in vaccine research facility biosafety suite

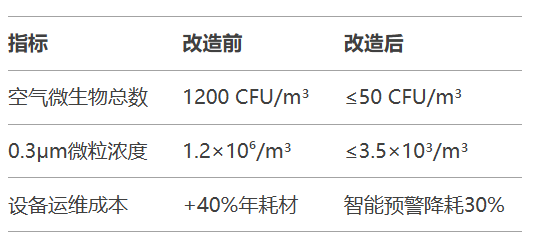

Implementation Results and Performance Metrics

Following system commissioning and six months of operational validation, the facility achieved exceptional performance across all critical parameters. Independent third-party testing confirmed compliance with ISO 14644-1 Class 5 standards under both at-rest and operational conditions.

99.996%

Actual Filtration Efficiency (0.3μm MPPS)

30%

Energy Consumption Reduction

0

Contamination Incidents (3-year track record)

100%

First-Attempt Pass Rate (GMP + FDA audits)

Figure 2: Real-time monitoring dashboard showing sustained ISO Class 5 performance over 18-month operational period

Detailed Performance Analysis

Quantified Customer Value

✓

Risk Elimination

Zero biosafety cabinet contamination incidents recorded over three consecutive years of high-throughput vaccine development operations. This track record eliminated potential product batch losses estimated at $2.3M+ per incident.

✓

Regulatory Compliance

Achieved first-attempt approval from both domestic GMP authorities and FDA international inspection teams. Automated compliance documentation system reduced audit preparation time by 75%, with inspectors specifically noting the "exemplary environmental monitoring protocols."

✓

Operational Efficiency

Modular filter design with extended service intervals reduced annual maintenance costs by 30% compared to legacy system baseline. Variable-speed fan controls optimized energy consumption, delivering $47,000 in annual utility savings while maintaining superior air quality.

Extended Application Scenarios in Healthcare and Life Sciences

While this case study focused on vaccine research infrastructure, Whalesens multi-layer filtration technology adapts to diverse biomedical applications where air quality directly impacts outcomes:

Healthcare Facilities

Hospital ICU & Isolation Wards

Laminar flow systems for immunocompromised patients, with pressure cascade control to prevent pathogen migration between zones

Pharmaceutical Manufacturing

Sterile Filling & Packaging Lines

Grade A/B cleanroom environments for aseptic processing of injectables, biologics, and blood products meeting EU GMP Annex 1 requirements

Research Laboratories

Gene Sequencing & Cell Culture

Ultra-low particle environments (ISO Class 3-4) preventing sample cross-contamination in genomics and proteomics workflows

Hazardous Material Handling

Medical Waste Treatment Centers

Negative-pressure containment with HEPA exhaust filtration, protecting workers from airborne pathogens during waste sterilization

Customer Testimonial

❝

This filtration system played a critical role during our COVID-19 vaccine development program. Even under 24/7 intensive operation with frequent material transfers and personnel movement, the system maintained rock-solid cleanliness levels. We never had to question whether environmental factors might be affecting our experimental data. That confidence was invaluable when regulatory timelines were measured in weeks, not months.

Dr. Li Zhang, PhD

Director of Vaccine Process Development

National Infectious Disease Research Institute

Why Choose Whalesens for Life Sciences Air Purification

With 15 years of exclusive focus on medical and pharmaceutical cleanroom applications, Whalesens delivers turnkey solutions that address the full lifecycle of air quality management—from initial contamination risk assessment through long-term maintenance optimization.

Our End-to-End Service Model

1

Site Assessment & CFD Modeling

Computational fluid dynamics simulation validates airflow patterns and identifies contamination risk zones before construction

2

Custom System Engineering

Filter staging, fan sizing, and control logic tailored to your specific processes, spatial constraints, and regulatory requirements

3

Factory Integration & Testing

Pre-assembled air handling units undergo full performance validation before shipment, reducing on-site commissioning time by 40%

4

IQ/OQ/PQ Validation Support

Complete documentation packages and on-site technical support for installation qualification, operational qualification, and performance qualification protocols

5

Predictive Maintenance Programs

Remote diagnostics and condition-based service scheduling maximize uptime while minimizing emergency interventions

Our Track Record in Life Sciences

37

Top-Tier Hospitals Served

16

National Key Labs Equipped

15

Years Specialized Experience

100%

Client Retention Rate

Frequently Asked Questions

Q: What ISO cleanroom classification can Whalesens filtration systems achieve?

A: Our systems are validated to achieve ISO 14644-1 Class 3 through Class 7 environments, depending on application requirements. For biosafety level 3 (BSL-3) laboratories like the vaccine research case study, we typically design to ISO Class 5 (equivalent to former Class 100) with particle counts <3,520 particles/m³ at 0.5μm and ≤1 CFU/m³ microbial contamination.

Q: How often do HEPA filters need replacement in pharmaceutical applications?

A: Service life depends on pre-filtration quality and operating conditions. With our multi-stage approach, H13 HEPA filters typically last 18-24 months in continuous pharmaceutical manufacturing, versus 12-15 months in systems lacking robust pre-filtration. Our predictive monitoring system alerts you when pressure drop reaches 80% of terminal value, enabling planned replacements before performance degradation affects production.

Q: Can the system integrate with existing building management systems?

A: Yes. Our controllers support BACnet, Modbus, and OPC-UA protocols for seamless integration with Siemens, Johnson Controls, Honeywell, and other major BMS platforms. We provide standardized data points for particle counts, temperature, humidity, differential pressure, and alarm status—all critical for 21 CFR Part 11 compliance documentation.

Q: What validation documentation is provided for regulatory audits?

A: Complete IQ/OQ/PQ protocol templates, individual filter test certificates per ISO 29463, material safety data sheets, construction drawings, and operational manuals. Our systems generate automated compliance reports with tamper-evident digital signatures suitable for FDA, EMA, and domestic GMP inspections. We also offer on-site technical support during regulatory audits.

Key Takeaways: Life Sciences Air Filtration Best Practices

• Multi-stage filtration dramatically extends HEPA service life while maintaining superior particle removal efficiency
• Real-time monitoring systems are non-negotiable for regulatory compliance and quality assurance in pharmaceutical manufacturing
• Predictive maintenance reduces unplanned downtime by 60% compared to reactive service models
• Proper system design can achieve 30% energy savings without compromising air quality performance
• Antimicrobial treatments on filter media prevent secondary contamination from microbial colonization
