Air Filtration in Pharmaceutical and Medical Device Industries
I. Core Principle: Building an Absolutely Controlled Clean Environment
The foremost requirement in pharmaceutical and medical device production is absolute contamination control. Air filtration is the foundation to achieve this goal.
Microbiological Contamination Control (Top Priority)
· Bacteria and fungal spores in the air are lethal threats to sterile products such as injectables and implantable devices. HEPA/ULPA filters are the most effective method to remove microorganisms and their carriers (dust particles) from the air.
Suspended Particle Control
· Dust and fibers can cause embolisms in injectable drugs or foreign body reactions in precision medical devices. High-efficiency filtration keeps airborne particles within the strict limits defined by ISO 14644-1 and GMP.
Cross-Contamination Prevention
· In multiproduct facilities, air filtration combined with airflow design prevents cross-contamination by controlling the spread of potent ingredients through the air.
Regulatory Compliance (Mandatory Requirement)
· Global agencies such as the NMPA (China), FDA (U.S.), and EMA (EU) require pharmaceuticals and medical devices to be manufactured in GMP-compliant cleanrooms. Air filtration systems are the key technology to achieve ISO 5/7/8 or GMP A/B/C/D cleanroom grades.
Personnel and Environmental Protection
· When handling highly potent, toxic, or sensitizing substances, exhaust HEPA filters protect operators from exposure and prevent hazardous emissions to the external environment.
II. System Applications: Comprehensive Filtration Solutions

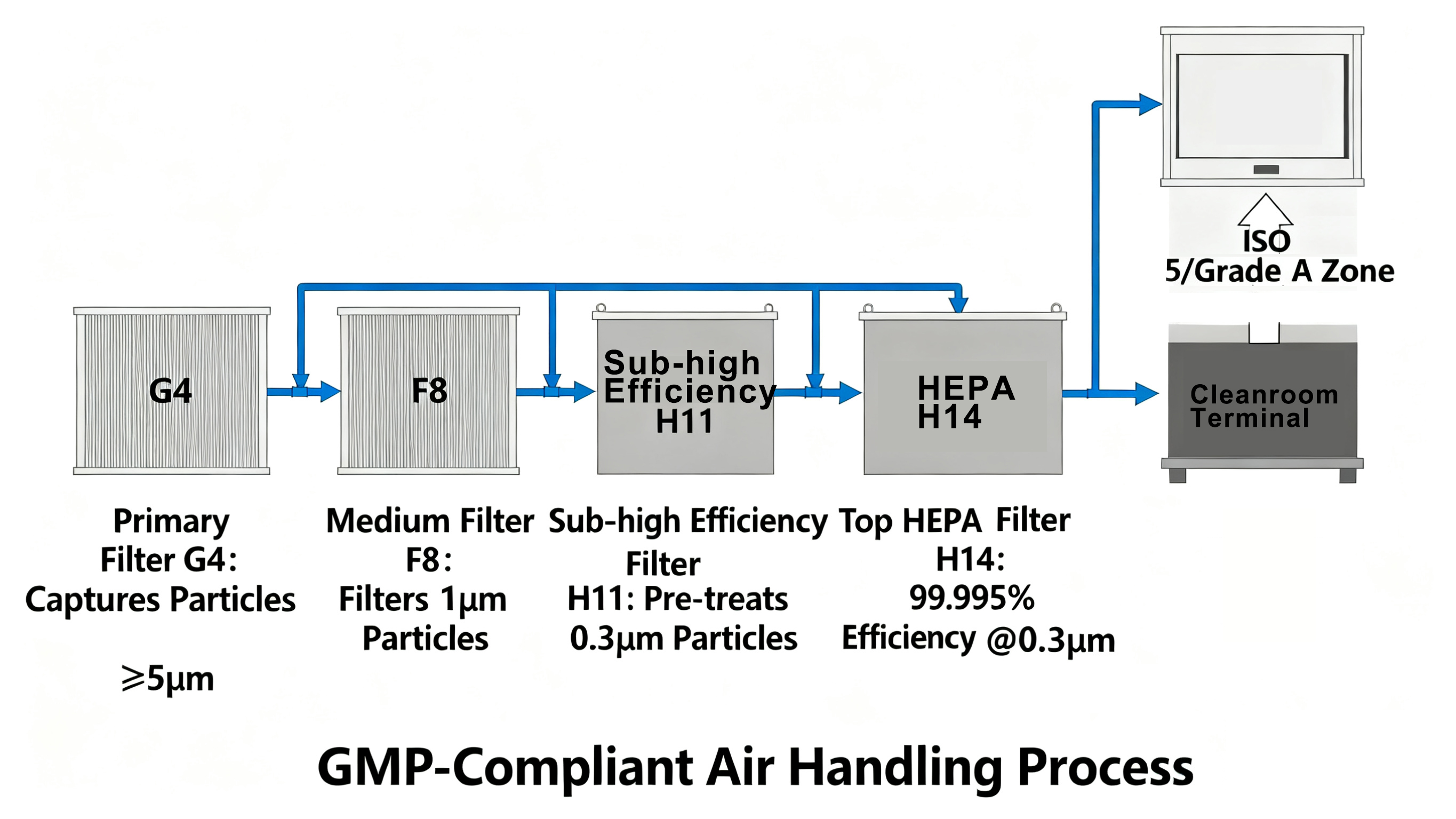

1. Cleanroom HVAC Systems: Multi-Stage Filtration Strategy
· Pre-filters (G4): Protect HVAC equipment by capturing large particles.
· Intermediate Filters (F7–F9): Reduce microbial load and protect terminal filters.

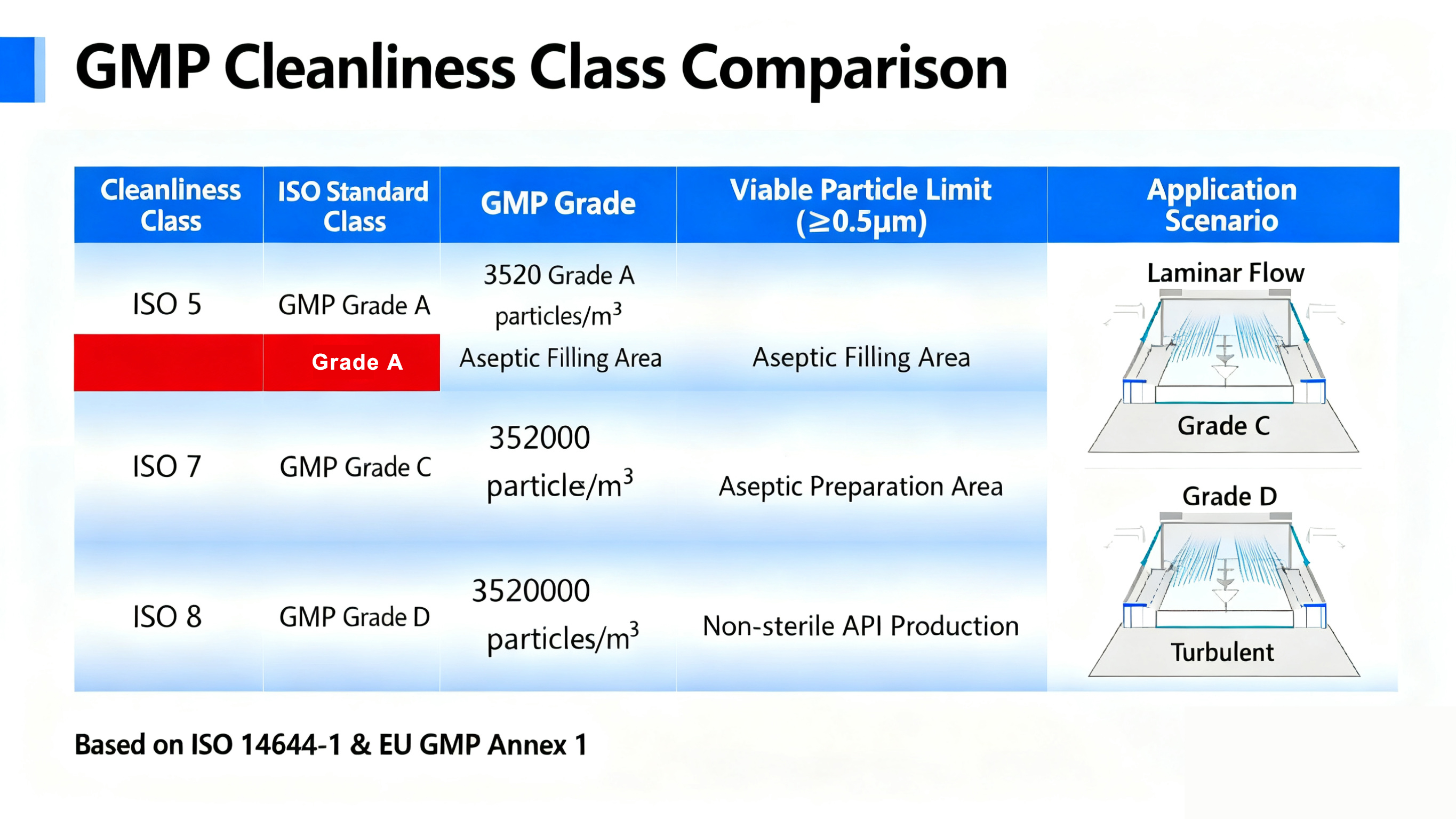

· Terminal Filters (HEPA/ULPA): The critical barrier to meet cleanroom classifications:
ISO 8 / GMP Grade D: H13 HEPA
ISO 7 / GMP Grade C: H14 HEPA
ISO 5 / GMP Grade A/B: H14 or U15 ULPA, combined with unidirectional airflow devices

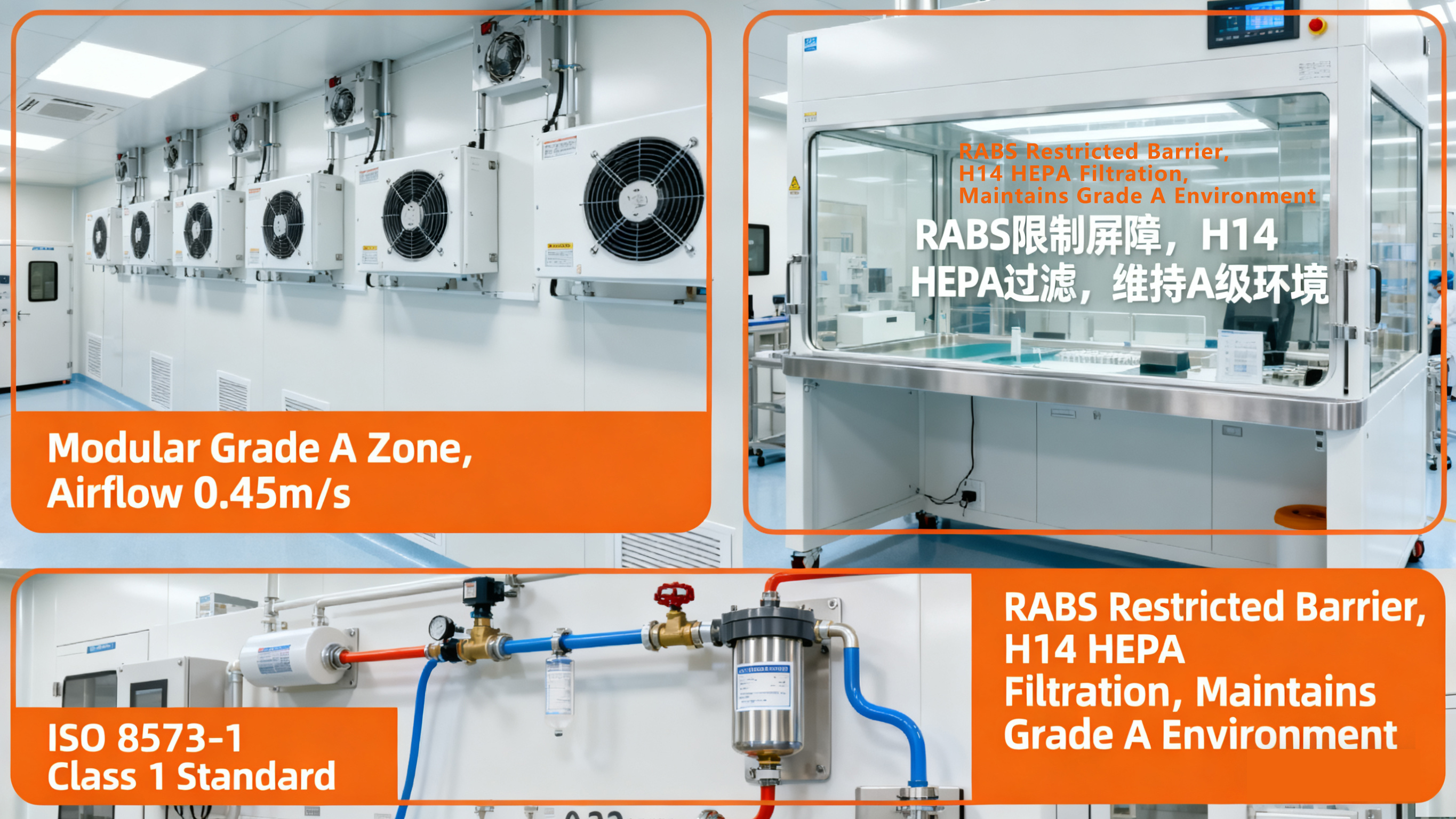

2. Critical Area Protection Equipment
· FFU (Fan Filter Units): Modular units that create large-scale unidirectional airflow environments (Grade A).
· Laminar Flow Hoods / Biosafety Cabinets: Provide localized Grade A protection at critical points.
· Isolators / RABS (Restricted Access Barrier Systems): Highest level of separation, completely isolating operators from aseptic processes while maintaining Grade A conditions inside.
3. Process Gas Filtration
All process gases (compressed air, nitrogen, etc.) that directly or indirectly contact the product must be filtered to remove particles, oil, and microorganisms. Sterilizing-grade 0.22 μm filters are required at the point of use, in compliance with ISO 8573-1 quality standards.
4. Exhaust Filtration & Safety
Areas generating hazardous aerosols or dust require HEPA exhaust filtration (sometimes dual-stage). Bag-in/Bag-out (BIBO) systems ensure safe replacement without operator exposure.
III. Quality Control & Validation: Ensuring System Reliability
Filter Integrity Testing
· All HEPA/ULPA filters must undergo on-site leak testing (PAO/DOP method) after installation, with leak rates <0.01%.
· Periodic requalification (typically every 6–12 months) is mandated.
System Validation
· Cleanroom HVAC systems must pass IQ/OQ/PQ qualification to demonstrate ongoing compliance with design and regulatory requirements.
· Validation includes particle counts, pressure differentials, airflow patterns, air change rates, temperature, and humidity.
Continuous Monitoring & Maintenance
· Pressure drop gauges monitor filter resistance to schedule preventive replacement.
· Maintenance and operations must be fully documented for regulatory audits.
IV. Value & ROI of Air Filtration
Patient Safety & Product Quality
· Minimizes contamination risk, ensuring safe and effective medicines and devices.
Regulatory Compliance
· A prerequisite for regulatory approval, manufacturing licenses, and product launches.
Risk & Cost Reduction
· Prevents batch failures, product recalls, and regulatory penalties due to contamination.
Reputation & Market Advantage
· Demonstrates a commitment to the highest quality standards, building trust with regulators and customers.
V. Challenges & WhaleSens Solutions
Challenge | WhaleSens Solution |
|---|---|
High construction & operating costs | Cost-effective FFU solutions; optimized system design to reduce energy use |
High energy consumption | Low-resistance high-efficiency filters for energy savings |
Strict maintenance requirements | Professional maintenance outsourcing, SOPs, and replacement management plans |
Lack of skilled professionals | Comprehensive technical training & lifetime support |
Conclusion
In the pharmaceutical and medical device industries, air filtration systems are the foundation for product quality, patient safety, and regulatory compliance. Their deployment requires precise engineering, rigorous validation, and specialized maintenance.
Partnering with WhaleSens gives you:
· A full range of GMP/ISO-compliant filters (HEPA/ULPA, sterile gas filters)
· End-to-end services from design, installation, and validation
· Reliable after-sales support and maintenance programs
