2025-09-21Air Filter Applications in Compressed Air Systems
Introduction
Compressed air is the second most widely used industrial energy source after electricity, extensively applied in automotive, electronics, food and beverage, and pharmaceutical industries. Untreated compressed air contains various contaminants that must be removed through multi-stage air filtration systems to meet the required air quality and protect downstream equipment and final products.
The ISO 8573-1 international standard is widely used to measure compressed air quality. Whalesens Technology provides comprehensive filtration solutions tailored to meet these requirements.
1. Contaminants in Compressed Air
Contaminant Type
Source
Typical Issues
Solid Particles
Ambient intake air, wear particles, rust, scale
Damage pneumatic components, valves, and precision instruments
Moisture
Atmospheric humidity, condensation in compressor
Corrosion of pipes and valves, microbial growth
Oil
Lubricated compressors, hydrocarbon vapor
Contamination of products, affects food, pharma, or electronics processes
Microorganisms
Ambient air, wet pipelines
Contamination of food, pharmaceuticals, or biotechnological products

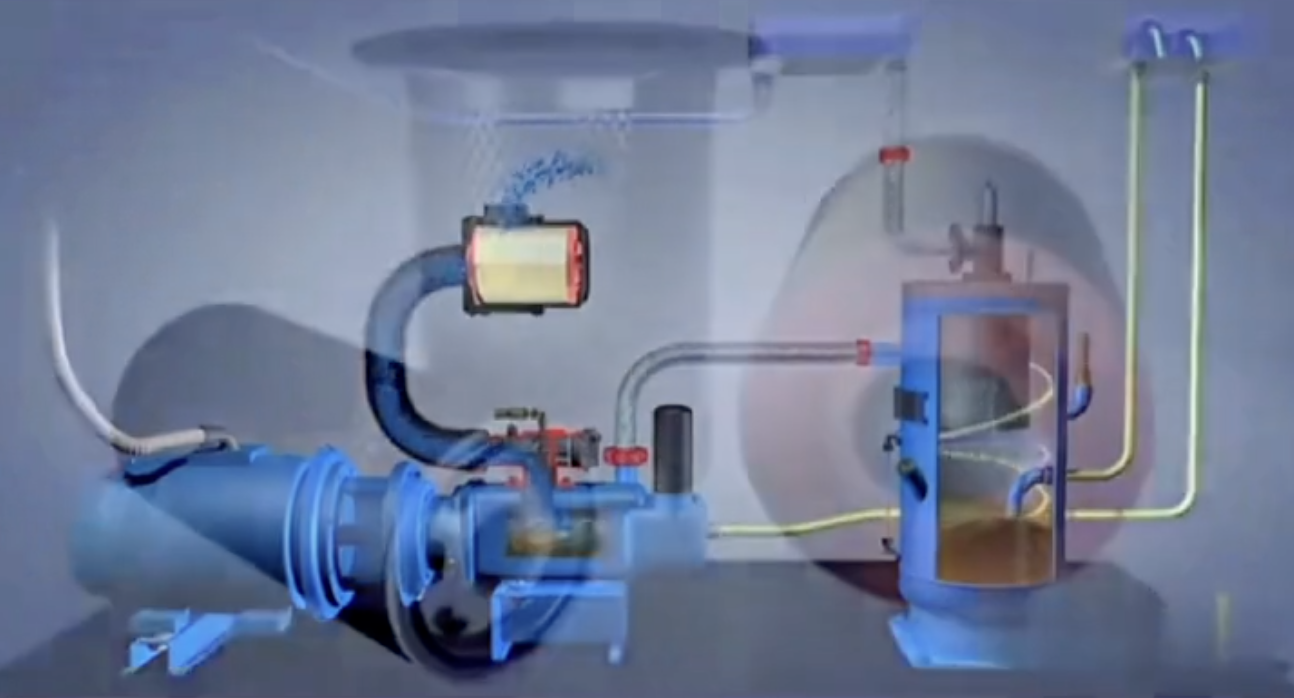

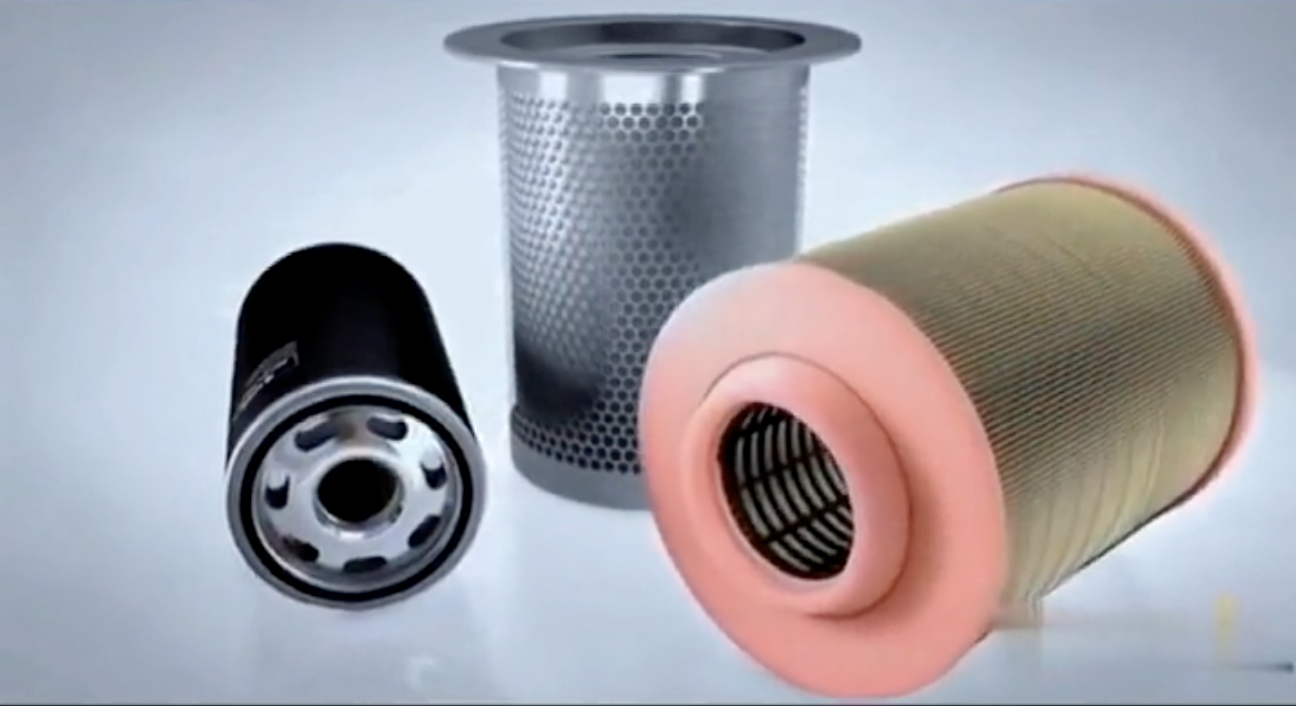

2. Typical Air Filter Configuration
Filter Type
Location
Function
Technology Features
Intake Air Filter
Compressor inlet
Remove large dust particles, protect compressor
Dry pleated paper or synthetic fiber, 1–10 µm
Pre-Pipe Filter
After storage tank, before dryer
Remove coalesced water and oil, protect dryer
Multi-layer fiberglass, 1–5 µm
Post-Pipe High-Efficiency Filter
After dryer
Remove fine oil aerosols, ensure high purity
Precision coalescing, 0.1 µm particles, residual oil ≤0.01 mg/m³
Dust Filter
After adsorption dryer
Capture micro-particles from desiccant regeneration
Dry particle filter, 0.1–1 µm
Activated Carbon Filter
After oil removal filter
Remove oil vapor, hydrocarbons, and odors
Packed or modular activated carbon cartridge
Point-of-Use (POU) Filter
Just before equipment
Remove secondary contaminants in piping
Particle, coalescing, membrane, or sterile filters (0.2–0.01 µm)
3. Whalesens Technology Solutions
Solution
Key Technology
Benefits
Oil-Resistant & Moisture-Resistant Media
Hydrophobic fibers
Prevent clogging, extend filter life by 30%
High-Efficiency Coalescing Filters
Multi-layer fiberglass
Achieve extremely low residual oil
Activated Carbon Deep Purification
High adsorption carbon
Remove oil vapor, hydrocarbons, and odors
Smart Operation & Maintenance
IoT monitoring
Real-time differential pressure alerts, reduce maintenance costs by 20%
4. Application Benefits
Increase Equipment Reliability – Reduce wear, corrosion, and downtime.
Ensure Product Quality – Critical for food, pharmaceuticals, and electronics manufacturing.
Reduce Operational Costs – Lower production stoppages, scrap, and maintenance expenses.
Improve Energy Efficiency – Clean, dry air reduces pipe leakage and valve wear.
Compliance with Standards – Achieve ISO 8573-1, GMP, HACCP requirements.
5. Challenges and Considerations
Pressure Drop & Energy Consumption – Each filter stage introduces pressure loss. Proper selection is critical.
Filter Selection & Matching – Must consider air quality, flow rate, ISO 8573 requirements.
Maintenance Costs – Filters are consumables and require regular replacement.
Oil Contamination – Achieving Class 0 (oil-free) in lubricated compressors is costly. Consider oil-free compressors or complex multi-stage filtration.
Humidity Management – Filters remove liquid water but rely on dryers to remove vapor.
System Monitoring – Periodic audits and performance verification are essential.
6. Conclusion
Air filters are indispensable in compressed air systems. A multi-stage configuration from the compressor inlet to point-of-use ensures clean, dry, and oil-free air, protecting equipment, improving product quality, reducing costs, and complying with industry standards.
Whalesens Technology provides comprehensive filtration solutions combining oil-resistant media, high-efficiency coalescing filters, activated carbon purification, and smart IoT monitoring, enabling reliable and efficient compressed air systems for industrial applications.
