2025-12-19Air Filter Classification Explained: From Pre-Filters to HEPA & ULPA
Indoor air quality relies heavily on air filters, which act as the core defense against particulate pollution. From residential HVAC systems and office ventilation to hospital operating rooms and semiconductor cleanrooms, different filter classes serve very different purposes.
Based on internationally recognized standards, this guide explains air filter classifications, filtration principles, testing methods, and real-world applications—helping you choose the right "air protection network" for your needs.

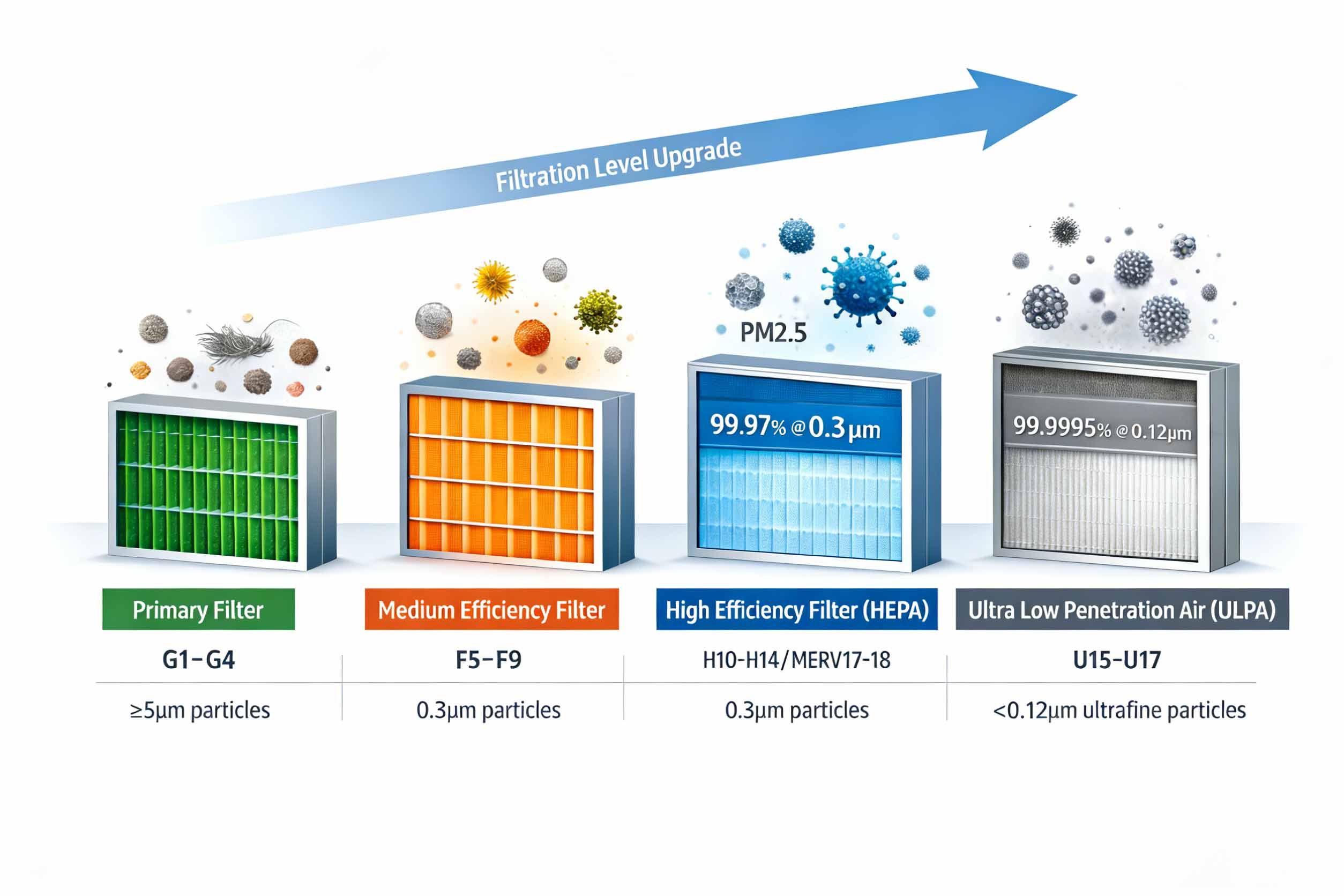

1. Understanding Air Filter Classifications: International Standards
Globally, air filter performance is mainly defined by two standards:
EN 1822 (Europe) – Focuses on efficiency at the Most Penetrating Particle Size (MPPS)
ASHRAE 52.2 (USA) – Uses MERV (Minimum Efficiency Reporting Value) ratings
These standards divide air filters into four main categories according to their filtration capability and intended application.
Filter Class
EN 1822 (EU)
ASHRAE 52.2 (US)
Primary Filtration Capability
Pre-filter
G1–G4
–
≥5 μm particles (hair, dust, fibers)
Medium filter
F5–F9
–
≥1 μm particles (pollen, smoke, bacteria)
HEPA filter
H10–H14
MERV 17–18
0.3 μm particles (PM2.5, viruses, aerosols)
ULPA filter
U15–U17
–
<0.12 μm ultra-fine particles
Key Concept: What Is MPPS?
The Most Penetrating Particle Size (MPPS) refers to the particle diameter that is hardest for a filter to capture—typically around 0.1–0.3 μm. EN 1822 evaluates filters at MPPS to ensure performance under the most demanding conditions.

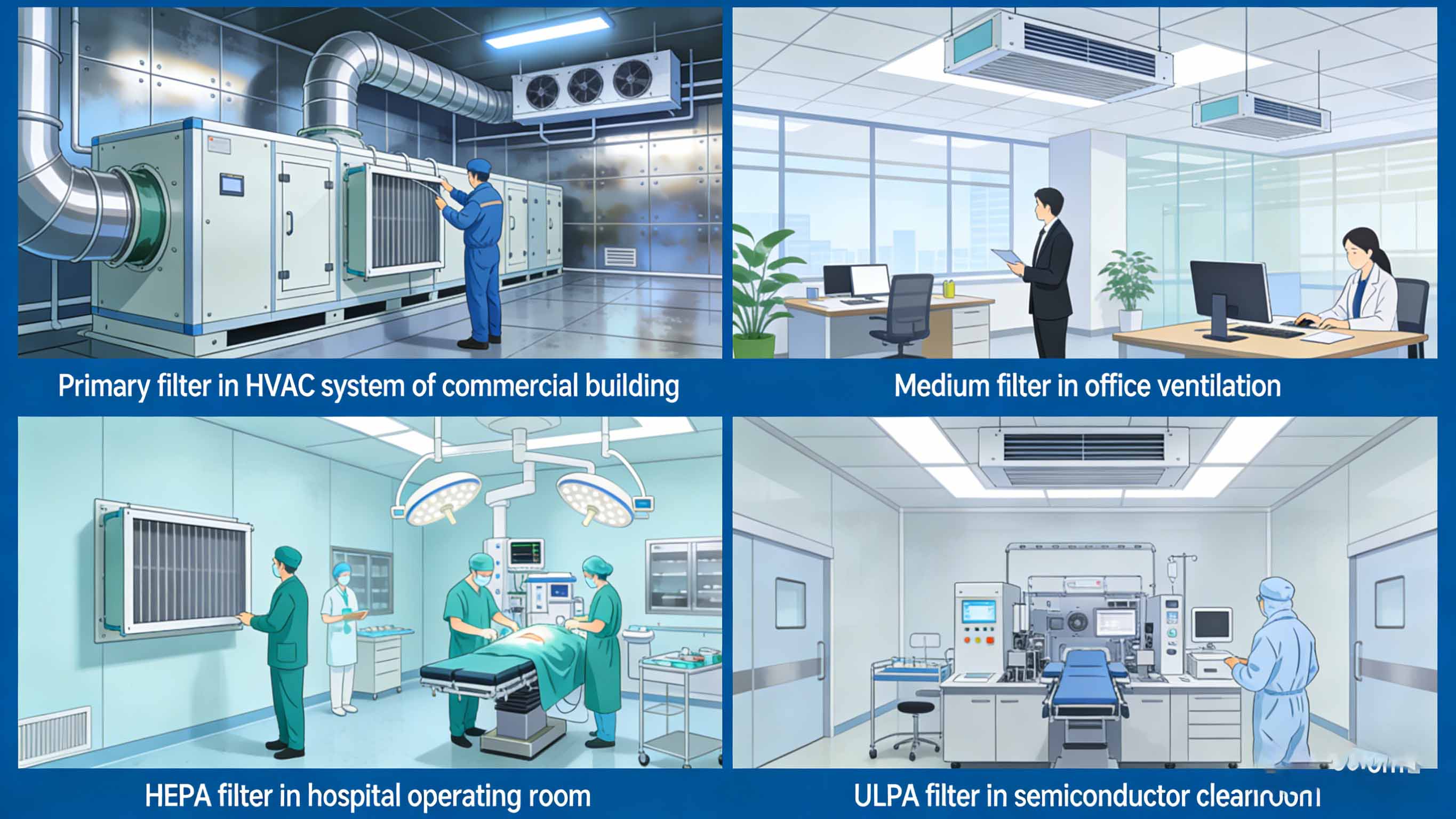

2. Filter Classes Explained: Features and Applications
2.1 Pre-Filters (G1–G4): The First Line of Defense
Pre-filters remove large particles and protect downstream filters.
Particles captured: ≥5 μm (dust, hair, fibers)
Efficiency: G1 (≥20%) → G4 (≥85%)
Advantages: Low cost, low pressure drop, high airflow
Applications:
HVAC pre-filtration in offices and malls
Air compressors and return air systems
Residential fresh air systems
Replacement cycle: 2–3 months
2.2 Medium Filters (F5–F9): The Workhorse Stage
Medium filters capture finer particulate matter and extend HEPA lifespan.
Particles captured: ≥1 μm (pollen, smoke, fine dust)
Efficiency: F5 (≥40%) → F9 (≥95%)
Applications:
Electronics, pharmaceutical, chemical industries
Hospital wards, food processing facilities
Commercial buildings and hotels
Replacement cycle: 6–12 months
2.3 HEPA Filters (H10–H14 / MERV 17–18): Precision Filtration Core
HEPA filters are critical for controlling PM2.5, bacteria, and viruses.
Particles captured: 0.3 μm
Efficiency:
H10 ≥95%
H13 ≥99.995%
H14 ≥99.999%
Applications:
Hospital operating rooms and laboratories
Cleanrooms and biopharmaceutical plants
Home air purifiers (H13 recommended)
Replacement cycle: 1–2 years
Selection tip: For residential use, H13 HEPA provides optimal performance without excessive energy consumption.
2.4 ULPA Filters (U15–U17): Ultimate Clean Air Protection
ULPA filters target ultra-fine and nano-scale contaminants.
Particles captured: <0.12 μm
Efficiency:
U15 ≥99.9995%
U17 ≥99.999995%
Applications:
Semiconductor fabrication
Biosafety level 4 (BSL-4) laboratories
Aerospace precision manufacturing
3. How to Choose the Right Air Filter
3.1 Choose by Application
Residential: F7–F9 + H11–H13 combination
Allergy-sensitive households: H13 HEPA
Hospitals: H14 (operating rooms), H11–H13 (general wards)
Electronics & semiconductor: H14 or ULPA U15+
3.2 Key Performance Parameters
Filtration efficiency (by particle size)
Dust holding capacity
Initial pressure drop
Material safety and certification

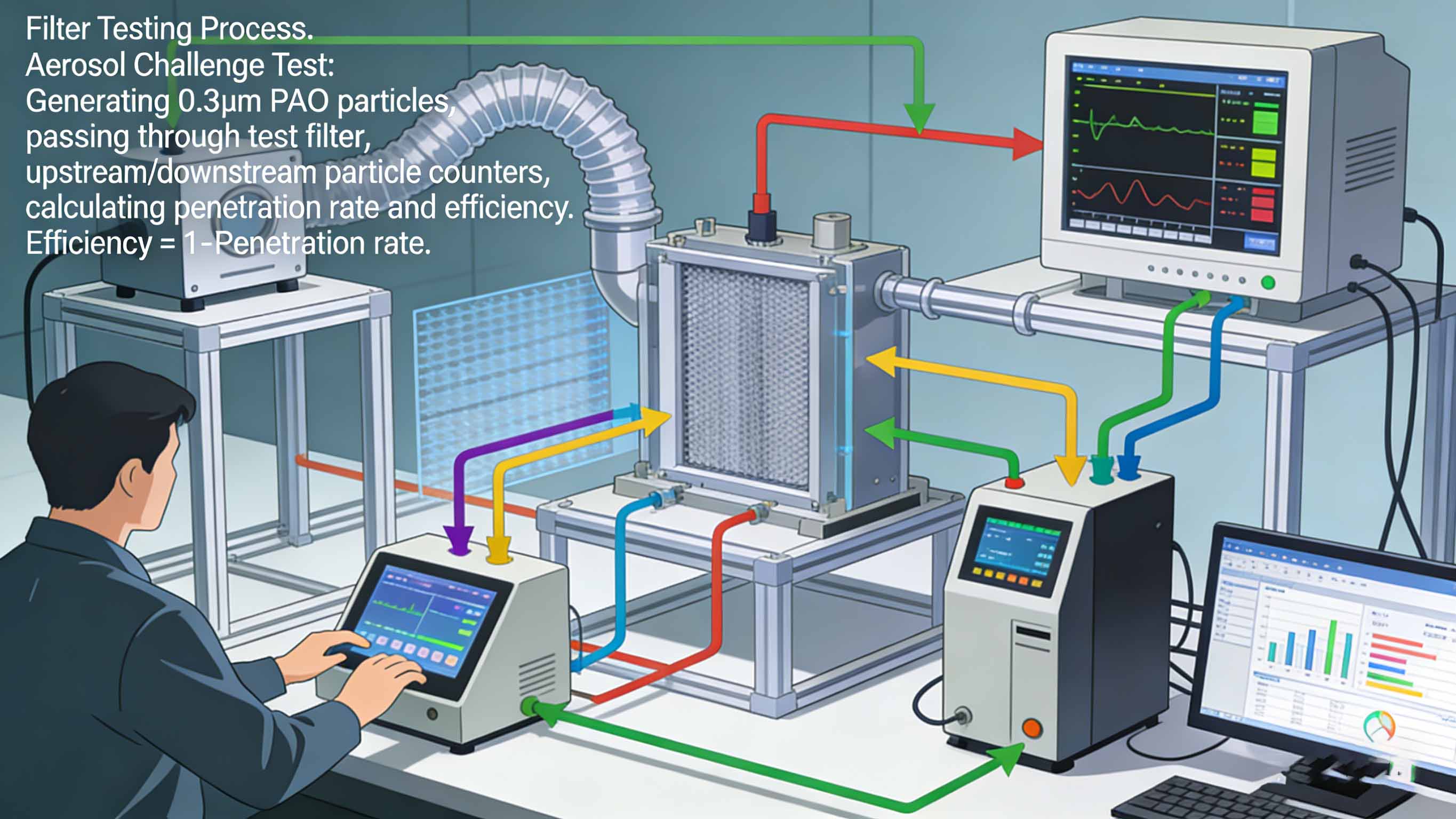

4. Filtration Testing Methods Explained
4.1 MPPS Method (EN 1822)
Filters are challenged with aerosol particles at MPPS, ensuring worst-case efficiency compliance.
4.2 Particle Counting Method
Upstream and downstream particle concentrations are compared using optical particle counters.
4.3 Aerosol Scanning (Leak Test)
Used for HEPA and ULPA filters to detect local leaks and ensure uniform performance.

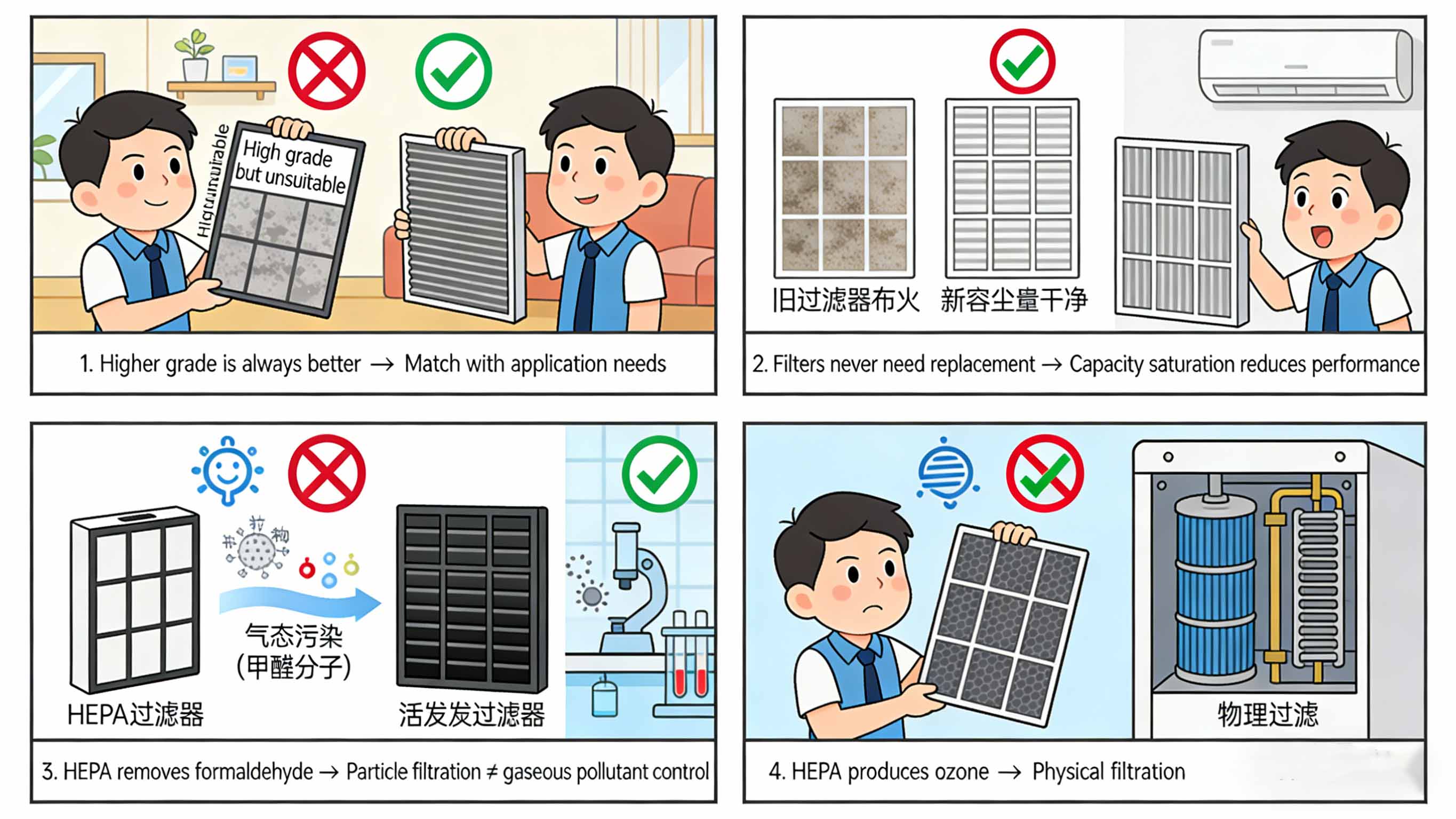

5. Common Misconceptions
"Higher grade is always better" – False. Excessive filtration increases energy use.
"Filters never need replacement" – False. Loaded filters reduce airflow and efficiency.
"HEPA removes formaldehyde" – False. Gas removal requires activated carbon.
"HEPA produces ozone" – False. HEPA is a passive mechanical filter.
Conclusion
Air filters are the invisible guardians of indoor air quality. Understanding filter classifications, efficiency standards, and testing methods enables smarter selection—delivering cleaner air, lower energy consumption, and safer indoor environments.
