Abstract: In-Cabin Air Quality (ICAQ) has become a core indicator for measuring the quality of New Energy Vehicles (NEVs). Air filters are not only guardians of driving health but also the "lifeline" of high-value components such as fuel cells in Fuel Cell Electric Vehicles (FCEVs). This article will delve into the two core applications of air filters for NEVs: high-efficiency air conditioning filters (HEPA/CN95) for health protection and special chemical filters for FCEV cathode air intake for hardware protection, helping you fully understand their technical trends, selection criteria, and performance optimization strategies.

As the NEV market shifts from "electrification" to "intelligentization" and "experientialization", the healthy in-cabin environment and long-term reliability of core components have become a common focus for consumers and manufacturers. Air filters, as the bridge connecting the external environment and the vehicle’s precision internal systems, are playing an unprecedentedly critical role.

I. Core Requirements: Beyond Health, the Cornerstone of System Safety

The demand for air filtration in NEVs mainly centers on two core aspects:

1. Driver and Passenger Health and Comfort: Building a Mobile Healthy CabinThis is the most direct user-perceptible level. Through high-efficiency filtration systems, NEVs strive to transform the cabin into a clean "mobile safe haven", mainly addressing:

• Externally Invasive Pollutants: High-efficiency filtration of common urban pollutants such as PM2.5, PM10, pollen, and traffic exhaust (SO₂, NOₓ).

• Internally Emitted Pollutants: Adsorbing volatile organic compounds (VOCs) such as formaldehyde and benzene series released from interior materials to eliminate the "new car smell".

• Biological Contaminants: In the post-pandemic era, the demand for protection against air-borne pathogens such as bacteria, viruses, and mold spores has surged significantly.

1. Protection of High-Value Key Components: Ensuring Core Vehicle PerformanceThis is related to the long-term reliability and ownership costs of the vehicle.

• "Life Support" for Fuel Cell Electric Vehicles (FCEVs): The proton exchange membrane (PEM) and catalysts of fuel cell stacks are extremely sensitive to trace chemical pollutants in the air, such as sulfides (H₂S) and nitrogen oxides (NOₓ). Pollutants at the ppb (parts per billion) level can cause "poisoning", seriously affecting efficiency and service life. The cathode air intake filter is the part with the highest technical threshold.

• Thermal Management Protection of Three-Electric Systems: Although liquid cooling is the mainstream solution, some on-board chargers (OBC), DC-DC converters, or regional controllers may adopt air cooling. Their intake filtration can prevent dust accumulation from affecting heat dissipation and avoid overheating failures.

•


II. Core Technical Applications: In-Depth Analysis of Two Major Systems

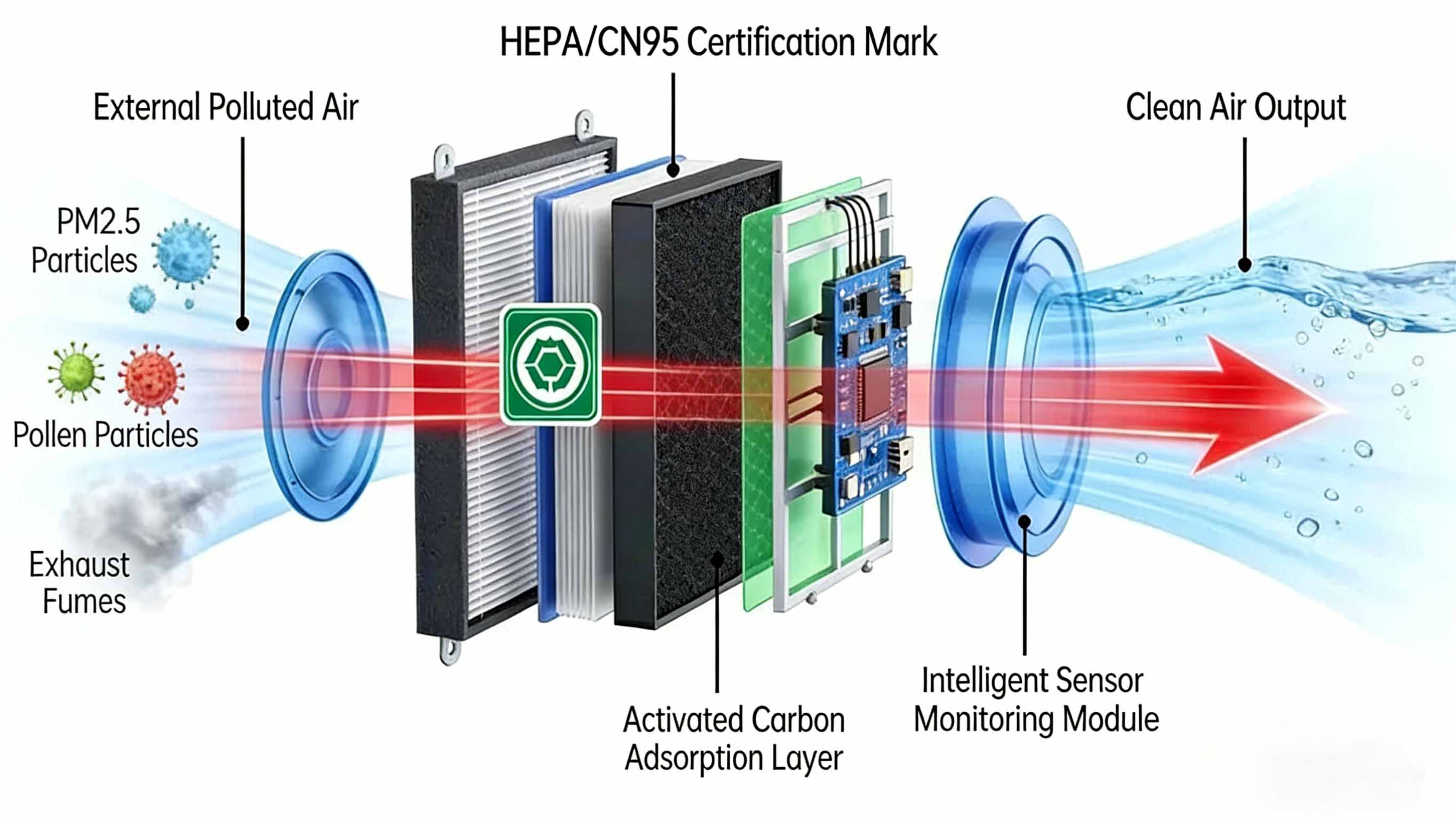

1. Passenger Cabin Air Conditioning Filter: From Basic Filtration to Intelligent Purification

• Installation Location: Mounted at the front end of the HVAC system blower.

• Technological Evolution:

• High-Performance Composite Filter Media: Adopting a "melt-blown microfiber layer + electrostatic electret layer" structure to achieve high-efficiency and low-resistance capture of particulate matter (such as PM0.3), meeting the standards of HEPA H12/H13 or China’s "CN95" certification.

• Broad-Spectrum Gas-Phase Adsorption: Using modified activated carbon with high iodine value and impregnated with special catalysts to target the adsorption of formaldehyde, ozone, and various VOCs.

• Multi-Function Integration: Adding antibacterial and antiviral coatings (such as silver ions), allergen-neutralizing layers, and even linking with fragrance systems.

• Intelligent Trends:

• Real-Time Monitoring and Automatic Regulation: Integrating PM2.5 and VOC sensors to automatically switch between internal and external circulation and adjust blower air volume.

• Remote Intelligent Purification: Supporting remote activation of the "cabin cleaning" mode via mobile phone App to pre-purify the in-cabin air.

• Intelligent Filter Life Management: Calculating the remaining service life based on actual air flow and pollution load, rather than simply relying on mileage.

•

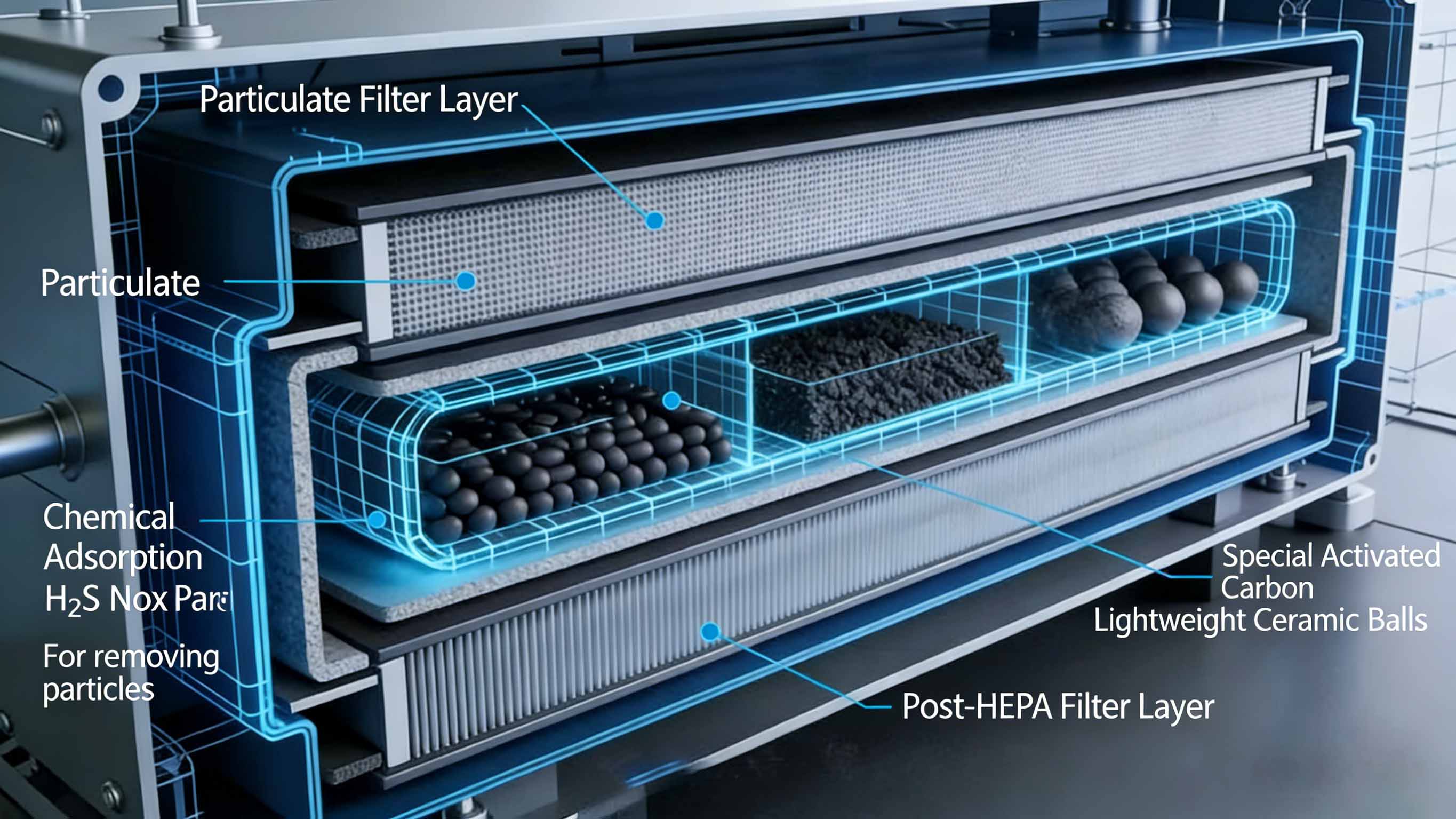

1. FCEV Cathode Air Intake Chemical Filter: The Epitome of Cutting-Edge Technology

2.


• Objective: Achieving deep removal of ultra-low concentration chemical pollutants at the ppb level.

• Technical Configuration (Multi-Stage Composite Type):

1. Particulate Pre-Filtration: Removing atmospheric dust and large particles to protect the precision chemical layers at the back end.

2. Core Chemical Adsorption Bed: Composed of multiple layers or mixtures of adsorbents impregnated with special chemical reagents (such as special activated carbon, activated alumina, potassium permanganate spheres, zeolite molecular sieves), targeting acidic gases, alkaline gases, hydrocarbons, etc., through chemical reactions or adsorption.

3. Post-Particulate Filtration (HEPA Grade): Capturing fine dust that may fall off from the chemical filter layer, serving as the final particulate barrier.

• Design Challenges: Under the harsh on-board environment of limited space, vibration, and temperature-humidity changes, it is necessary to simultaneously achieve extremely high purification efficiency, extremely low flow resistance, sufficient service life, and compact lightweight design. This is one of the key points of FCEV cost and technology.

III. Market Application Achievements and Development Trends

Application Achievements:

• Health Value: Significantly reducing the concentration of PM2.5 and allergens in the cabin, providing a comfortable environment for sensitive groups.

• Performance Guarantee: Ensuring the stability of power output and ultra-long service life of FCEV fuel cell stacks.

• Brand Premium: Advanced In-Cabin Air Quality Management (AQS) systems have become one of the core selling points of mid-to-high-end NEV models.

•


Core Development Trends:

1. High-Efficiency and Intelligentization of Cabin Filters: Popularization of HEPA-grade filters and in-depth integration with intelligent cabin systems.

2. Cost Reduction and Longevity of FCEV Filters: New materials and processes (such as structured adsorbents) are the keys to reducing system costs and promoting the popularization of FCEVs.

3. Standardized Integration of Active Purification Technologies: The application of UVC deep ultraviolet rays, plasma generators, etc., will pay more attention to safety (such as ozone control) and effectiveness verification.

4. Application of Sustainable Materials: Developing biodegradable or recyclable environmentally friendly filter media.

IV. Conclusion

The application of air filters in NEVs has far exceeded the traditional scope. They are not only "intelligent masks" that defend respiratory health but also core barriers that protect the vehicle’s "heart" and "nerves". From luxury intelligent cabins equipped with HEPA and activated carbon to fuel cell systems equipped with multi-stage chemical adsorption, every innovation in filtration technology directly improves the safety, reliability, and user experience of NEVs. For consumers, understanding these hidden technologies behind the panels is the key to making informed choices; for the industry, this is undoubtedly an important high ground for future competition.
