Air Filtration in Power Plants: Key Applications and Solutions
The stable operation of power plants relies heavily on efficient air filtration systems. Gas turbine inlet filters protect critical equipment, flue gas dust removal systems ensure compliance with stringent environmental standards, and HVAC systems safeguard personnel and sensitive control equipment. This article provides an in-depth analysis of the three major filtration applications in power plants, outlining technical requirements, advanced solutions, and practical benefits.
Introduction
Power plants are complex facilities where both heavy-duty machinery and precision control systems demand optimal air quality. From massive gas turbines to control rooms filled with sensitive electronics, the performance, reliability, and safety of operations depend on advanced air filtration solutions. Properly designed systems not only ensure energy efficiency and equipment longevity but also guarantee compliance with strict environmental regulations.
1. Gas Turbine Inlet Filtration: The First Line of Defense
Gas turbines are the “hearts” of gas-fired and combined-cycle power plants. The cleanliness of the intake air directly determines the turbine’s performance and lifespan.
1.1 Core Protection Functions

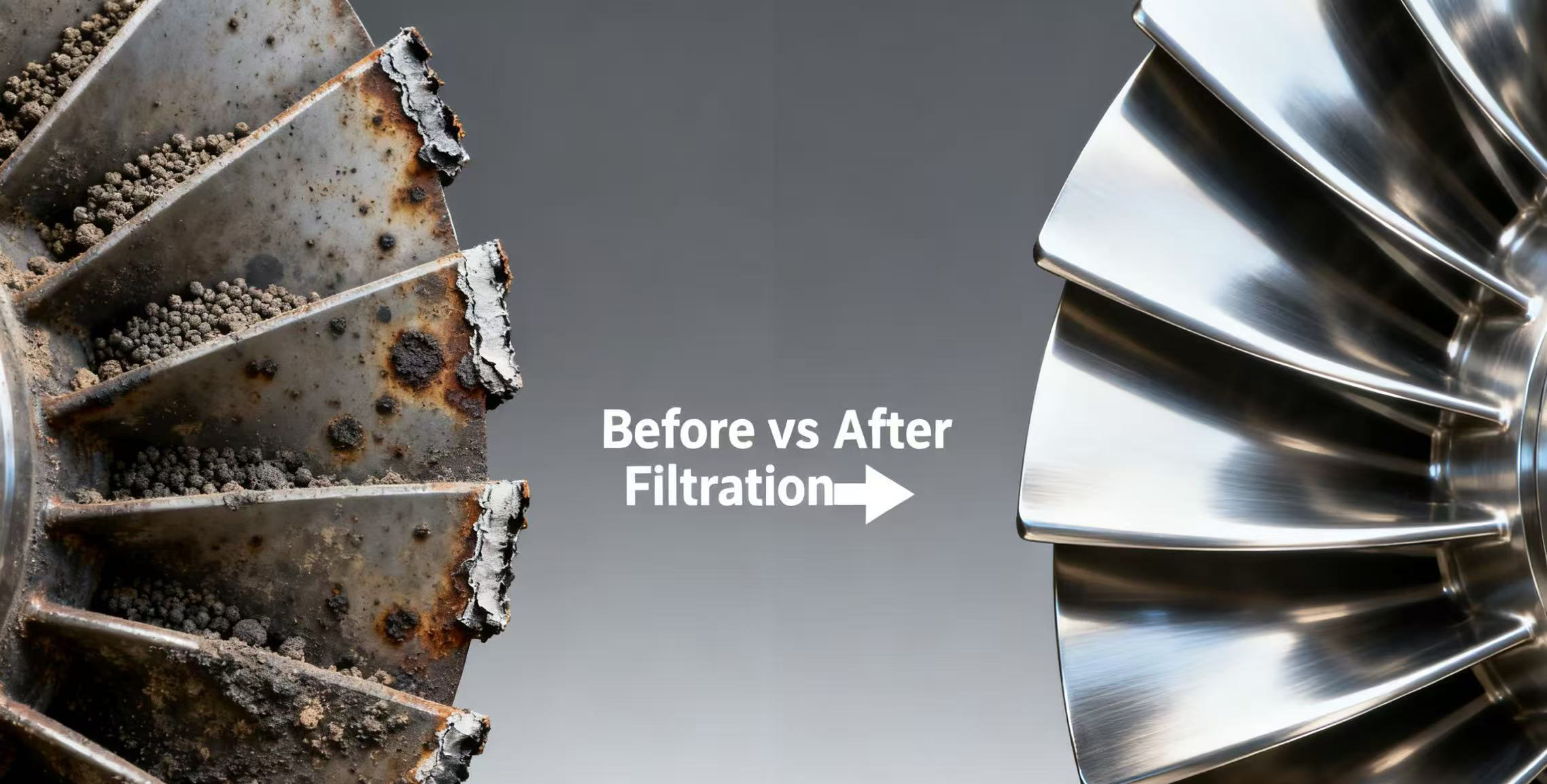

Preventing physical erosion: Fine airborne particles act like sandpaper, eroding compressor blades, altering aerodynamics, and reducing efficiency.
Avoiding chemical corrosion: Coastal salt and industrial SO₂/NOx can corrode hot-section components under high temperatures.
Reducing performance degradation: Deposits on blade surfaces cause compressor fouling, leading to output loss and higher fuel consumption.

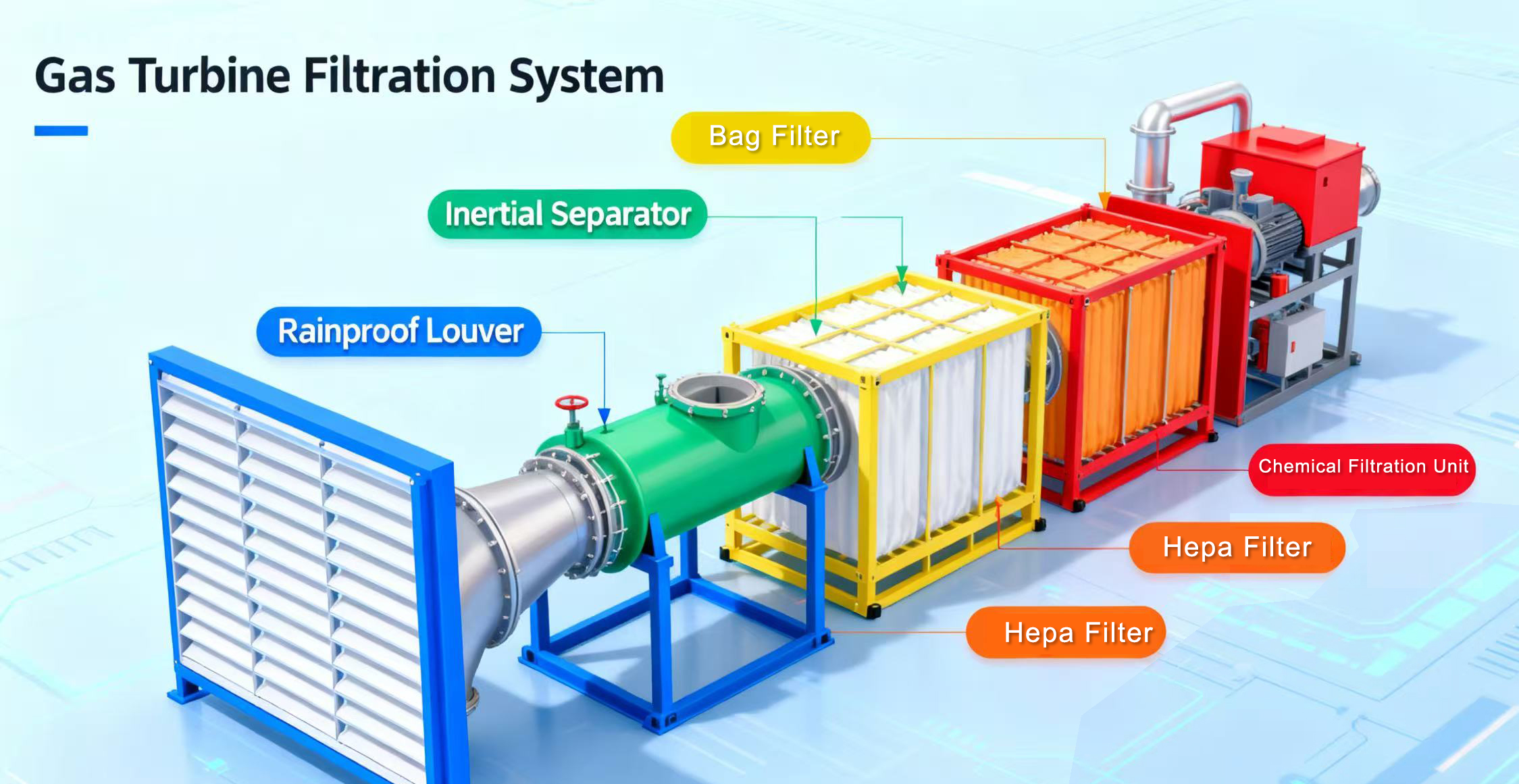

1.2 Multi-Stage Filtration Strategy
Stage | Recommended Type | Efficiency | Key Function | Protection Target |
|---|---|---|---|---|
Pre-filtration | Weather louvers + inertial separators | — | Prevent rain, insects, coarse dust | Downstream filters |
Main filtration | Bag or cartridge filters (F7–F9 / MERV 13–15) | High | Capture fine dust, prevent fouling | Compressor blades |
High-efficiency stage | Compact cartridges / HEPA (H10–H12 / MERV 16+) | Very high | Ultra-fine particle removal | Hot-section parts |
Chemical filtration | Activated carbon / chemical beds | — | Adsorb corrosive gases | Comprehensive protection |
1.3 Key System Features
Low pressure drop design: Every 1 inch w.g. of pressure drop reduces turbine output by ~0.5%.
High dust-holding capacity: Extends filter life in dusty environments.
Weather-resistant structure: Handles high winds, humidity, and temperature fluctuations.
Smart maintenance: Differential pressure monitoring and pulse cleaning systems maintain optimal performance.
1.4 Benefits
Maintain rated output by minimizing compressor fouling (5–10% potential loss).
Extend maintenance intervals for water/foam washing from hundreds to thousands of hours.
Reduce unplanned downtime and costly repairs.
Prolong turbine service life by preventing erosion and corrosion.
2. Flue Gas Dust Removal: Guaranteeing Environmental Compliance
Coal-fired, biomass, and waste-to-energy plants must operate advanced flue gas cleaning systems to meet increasingly stringent emission standards.
2.1 Technology Comparison
Technology | Principle | Efficiency | Best Application | Advantages |
|---|---|---|---|---|
Electrostatic precipitator (ESP) | High-voltage charging and particle collection | >99% | Large coal-fired units | Low pressure drop, high capacity |

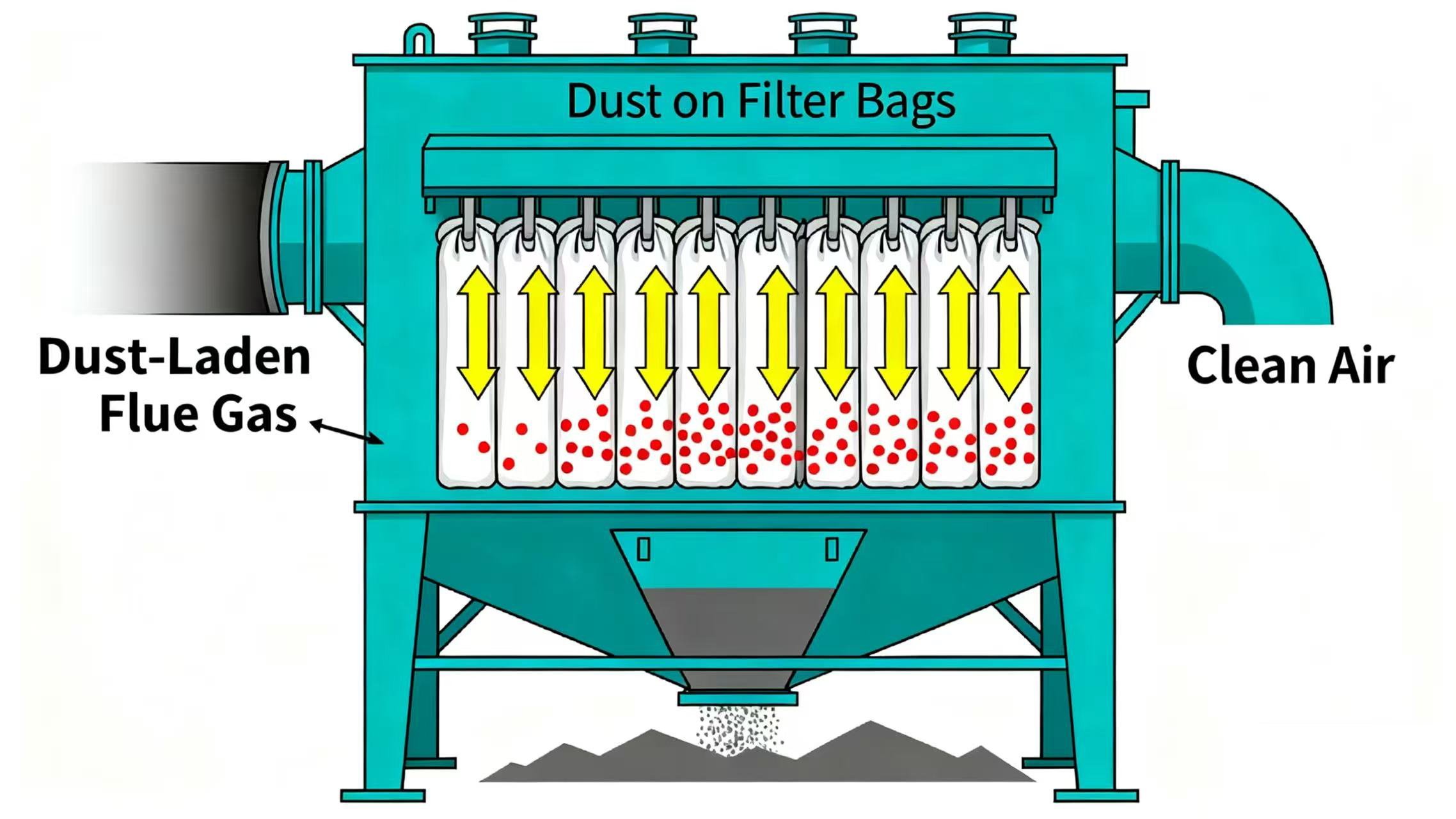

Fabric filter (baghouse) | Surface filtration via filter media | >99.9% | Ultra-low emission requirements | Excellent PM2.5 capture |
Hybrid ESP-bag filter | Combined ESP and baghouse | >99.95% | Retrofit/high-standard plants | Balance of efficiency and stability |
2.2 Filter Media Innovations
PPS media: Acid/alkali resistance, suitable for coal-fired flue gas.
P84 media: High precision, used in biomass power plants.
PTFE membrane: Surface filtration with excellent cleaning and low resistance.
Composite media: Multi-layer structures for complex gas conditions.
2.3 Environmental & Economic Value
Emission compliance: Achieve <10 mg/m³ particulate emissions (ultra-low standard).
Resource recovery: Collected fly ash reused as cement additives.
Operational stability: Avoid penalties or shutdowns due to non-compliance.
3. HVAC and Control Room Filtration: Protecting People and Precision
In power plants, control rooms and sensitive equipment spaces also require advanced air protection.
3.1 Protection Needs
Personnel safety: Provide a healthy and clean indoor environment.
Equipment reliability: Prevent dust-induced overheating or electrical failures.
Emergency preparedness: Use chemical filtration for potential gas leaks.

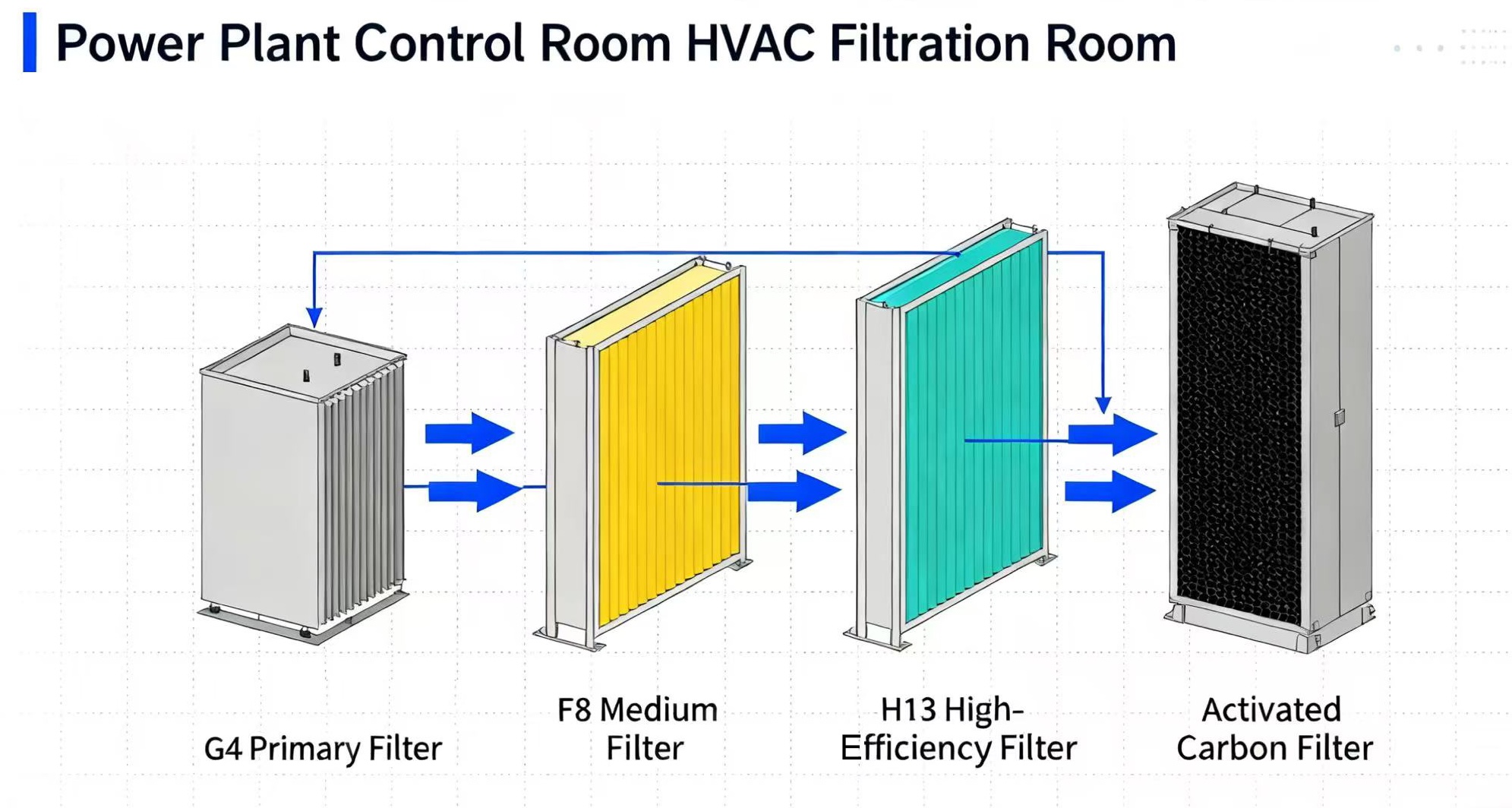

3.2 Recommended Configurations
Primary stage: G4 pre-filters for coarse particle removal.
Intermediate stage: F8–F9 bag filters for fine dust.
High-efficiency stage: H11–H13 filters for clean environments.
Chemical stage: Activated carbon filters for harmful gases and odors.
3.3 Other Applications
Coal handling systems: Explosion-proof dust collectors for safety.
Compressed air systems: Precision filters ensuring instrument air quality.
Hydrogen cooling systems: Specialized filters to maintain gas purity.
4. WhaleSens Power Plant Filtration Solutions
WhaleSens provides end-to-end solutions tailored for diverse power plant conditions.
Customized design: Solutions for coastal, desert, industrial, and cold climates.
Complete product range: Covering gas turbine inlets, flue gas cleaning, and HVAC.
Technical expertise: Diagnostics, performance optimization, and maintenance support.
Rapid response: Fast delivery of replacement filters to minimize downtime.
Conclusion
Air filtration systems are indispensable for power plant safety, efficiency, and compliance. Well-designed solutions improve turbine output, reduce maintenance costs, extend equipment life, and meet strict environmental standards.
With WhaleSens, you gain:
Professional technical consulting and site evaluation.
High-performance, long-life filtration products.
Comprehensive after-sales service and technical support.
Fast delivery and emergency response capability.
