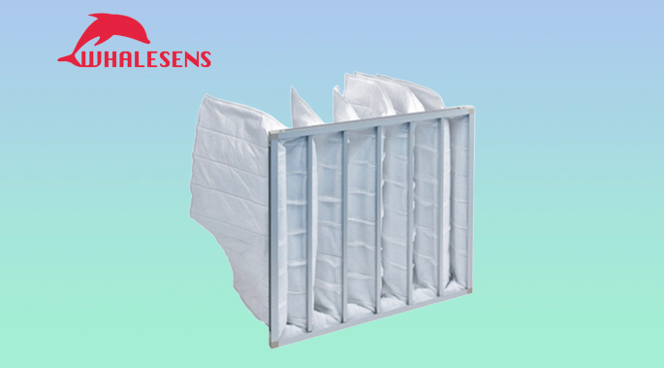

2025-08-05Deep Dive into Bag Air Filters
In the pursuit of efficient, energy-saving, and long-lasting air filtration solutions, bag air filters stand out as the star product in the medium to sub-HEPA segment. With their large effective filtration area and exceptional dust-holding capacity, they have become the ideal choice for many critical applications.
This article provides an in-depth analysis of the secrets behind bag air filters—from ingenious product configuration, diverse application scenarios, to key performance optimization strategies—helping you choose the right solution, maximize value, and achieve a win-win of clean air and cost savings.
1. Core Configurations of Bag Air Filters: Precision Design for High Efficiency
Bag filters are the backbone of medium to fine filtration systems, thanks to their carefully engineered three core components:
1. Filtration Media – The Heart of Performance
Synthetic Fibers (PP, PET): The mainstream choice, designed with multi-layer composite and gradient density structures. Coarse fibers on the intake side capture larger particles, while finer fibers inside capture smaller ones, enabling deep dust loading and longer service life.
Electrostatic Treatment (Electret): High-performance media is electrostatically charged to attract submicron particles (PM2.5, PM1, virus carriers) without significantly increasing resistance.
Micro-Glass Fibers (Special Use): For higher efficiency or temperature resistance, but fragile and requires careful handling.
2. Filter Bag Structure – Aerodynamic Engineering
Mini-Pleat/V-Shape Design: Ensures maximum filter media utilization and prevents bag adhesion.
Internal Supports: Ultrasonic welding creates internal baffles to maintain airflow stability and extend filter life.
Sealing Technology:
Ultrasonic welding (preferred): Ensures zero leakage.
Stitching (obsolete): Leaves needle holes, causing particle bypass.
3. Outer Frame – Durable Support
Aluminum Alloy: Lightweight, corrosion-resistant, widely used.
Galvanized Steel: High strength, ideal for heavy industry.
Plastic: Corrosion-proof, eco-friendly option for food and pharma.
4. Efficiency Standards
EN 779 (obsolete but referenced): F5–F9.
ISO 16890 (current): ePM10, ePM2.5, ePM1. Example: ePM1 65% means ≥65% efficiency at 1µm.
2. Wide Applications of Bag Air Filters: Solving Critical Air Challenges
The high dust-holding capacity and long service life make bag filters ideal for large airflow, continuous operation, and low-maintenance systems.
1. Commercial HVAC Systems – Comfort and Health Protection
Applications: Offices, shopping malls, airports, hotels, exhibition centers.
Role: Installed after pre-filters as the main filter stage.
Tasks:
Remove PM2.5, PM1, pollen, spores.
Provide clean, healthy indoor air.
Protect coils and fans from dust fouling.
Value: Extended life reduces replacement frequency and maintenance costs.

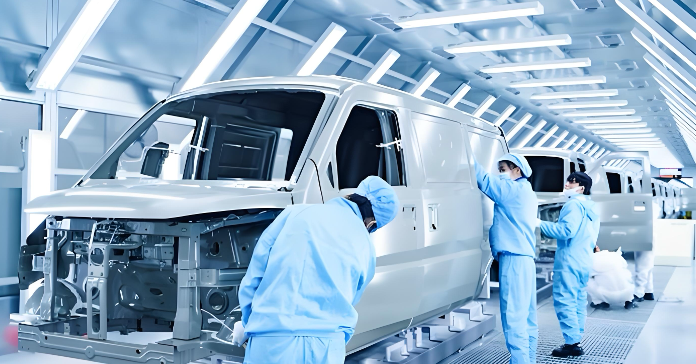

2. Industrial Ventilation & Cleanrooms – Safeguarding Production
Industries: Automotive paint shops, food processing, pharma, microelectronics, precision instruments.
Role: Pre-filter for HEPA/ULPA filters.
Tasks:
Reduce particle load on final filters.
Handle high dust loads (fibers, paint mist).
Value: Protects core equipment, reduces downtime, improves yield.
3. Hospitals & Healthcare – Infection Control
Areas: General wards, outpatient halls, labs, ICUs, operating rooms.
Tasks:
Reduce airborne pathogens.
Lower hospital-acquired infection (HAI) risk.
Recommendation: F7–F9 grade for medical use.

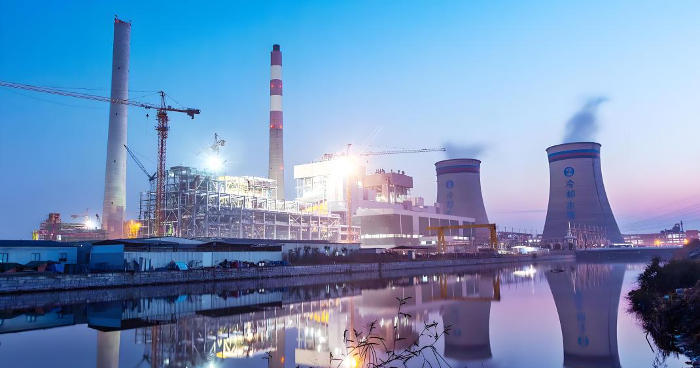

4. Gas Turbines & Compressors – Protecting Power Systems
Applications: Power plants, petrochemical plants, compressor stations.
Role: Mid- or final-stage filters in intake systems.
Tasks:
Prevent turbine blade erosion and fouling.
Ensure reliability, efficiency, and extended overhaul cycles.
Value: Enhance operational safety, reduce O&M costs.
3. Performance Optimization Strategies: Unlocking Full Potential
How to get the longest life, lowest resistance, and highest reliability from bag filters?
1. Enhance Efficiency and Stability
Use gradient-density composite media for consistent efficiency.
Choose electret-treated media for PM1 and virus capture.
Always use ultrasonic welding to eliminate leakage risks.
2. Maximize Dust Holding and Service Life
Optimize bag geometry with mini-pleat design and internal supports.
Maintain effective pre-filters (G3/G4) to block large dust loads.
3. Reduce Resistance, Save Energy
Maximize filtration area by selecting deeper or more bags.
Use aerodynamic bag designs to minimize turbulence.
Install differential pressure gauges for scientific replacement timing.
4. Strengthen Structural Reliability
Use strong frames (aluminum, galvanized steel).
Ensure airtight installation, with no bypass leaks.
Select moisture-resistant materials in humid or coastal environments.
Conclusion: Excellence in Technology and Reliability
A high-performance bag filter is the result of advanced composite media, aerodynamic bag design, and precision ultrasonic sealing.
With correct selection, proper pre-filtration, and pressure-based maintenance, the advantages of bag filters—large dust-holding capacity, long life, and low total cost of ownership—can be fully realized.
Choosing WhaleSens Technology’s premium bag filters means choosing:
Efficient air purification
Reliable long-term operation
Significant energy savings
Lower overall ownership costs
Contact WhaleSens Technology experts today for customized bag filter solutions!
