Invisible Protective Barrier of Power Systems: Principles of Air Filters Applied in High and Low Voltage Switchgear Rooms

As the "heart and brain" of power systems, high and low voltage power distribution rooms house critical equipment such as switchgear, circuit breakers, and transformers. Their stable operation directly determines the continuity of industrial production, commercial activities, and even social operations. However, airborne particles (e.g., dust, PM2.5) and corrosive gases (e.g., H₂S, Cl⁻) silently erode the equipment: dust accumulation causes reduced insulation and poor heat dissipation, while corrosive gases accelerate the oxidation of copper bars and aging of contacts. These invisible threats may lead to short circuits, fires, or even large-scale power outages. At this point, air filters emerge as the "unsung heroes" safeguarding the safety of power distribution rooms. By precisely controlling air quality, they build an invisible protective barrier for electrical equipment.

Figure 1: The interior of a high and low voltage power distribution room. Dense electrical equipment has high requirements for air quality, and air filters must work with ventilation systems to achieve comprehensive protection.

Air Filters: The Unsung Hero Steps Forward

Unveiling the Application Principle

The core function of air filters is to control the quality of air entering power distribution rooms through a multi-stage filtration system. The specific principle is as follows:

• Physical Interception: Using filter media with different pore sizes to capture airborne particles step by step (from catkins and insects to fine PM2.5 dust);
• Chemical Adsorption: Removing corrosive gases such as H₂S, NOₓ, and Cl⁻ using materials like activated carbon and chemical adsorbents;
• Positive Pressure Coordination: Cooperating with ventilation systems to maintain a slight positive pressure indoors, preventing unfiltered dirty air from seeping in through gaps in doors and windows.

Ultimately, it achieves the goal of "no pollutants entering the room and no equipment erosion," ensuring the long-term stable operation of power systems.

Analysis of Core Requirements

The application of air filters in power distribution rooms must meet four core requirements, as detailed in Table 1:

Diverse Applications for Comprehensive Protection

Air filtration in power distribution rooms requires scenario-specific solutions, primarily implemented through integrated ventilation/air conditioning (HVAC) systems, supplemented by local filtration. The specific types and configurations are as follows:

Detailed Explanation of Main Application Types

1. Intake Filtration for Integrated Ventilation/HVAC Systems (Mainstream Solution)

This solution ensures both fresh air and recirculated air meet standards through multi-stage filtration, making it the first choice for most power distribution rooms. The specific configuration is shown in Table 2:

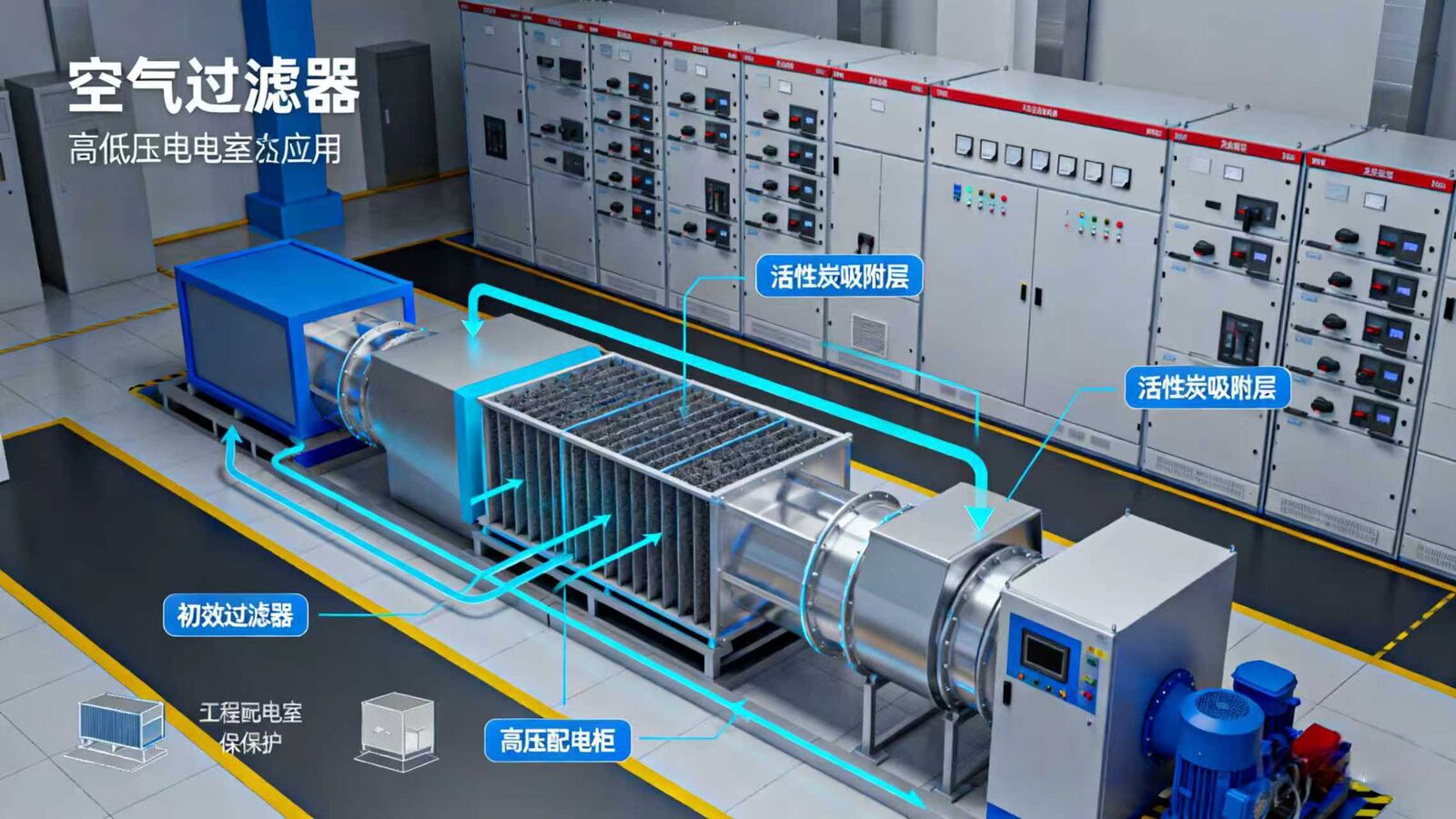

Figure 2: The multi-stage filtration process of an integrated ventilation system. From primary filtration to chemical filtration, the process progresses step by step to ensure air cleanliness meets standards.

2. In-Cabinet Local Filtration (Supplementary Solution)

For sensitive equipment such as PLC control cabinets and precision protection device cabinets, if the overall room cleanliness still fails to meet requirements, Fan Filter Units (FFUs) can be installed at the cabinet air inlets. The configuration is as follows:

• Filter media level: F8-F9 (for fine dust);
• Airflow rate: 50-200 m³/h (matched to cabinet size);
• Features: Compact size, flexible installation, and direct protection for precision components inside the cabinet.

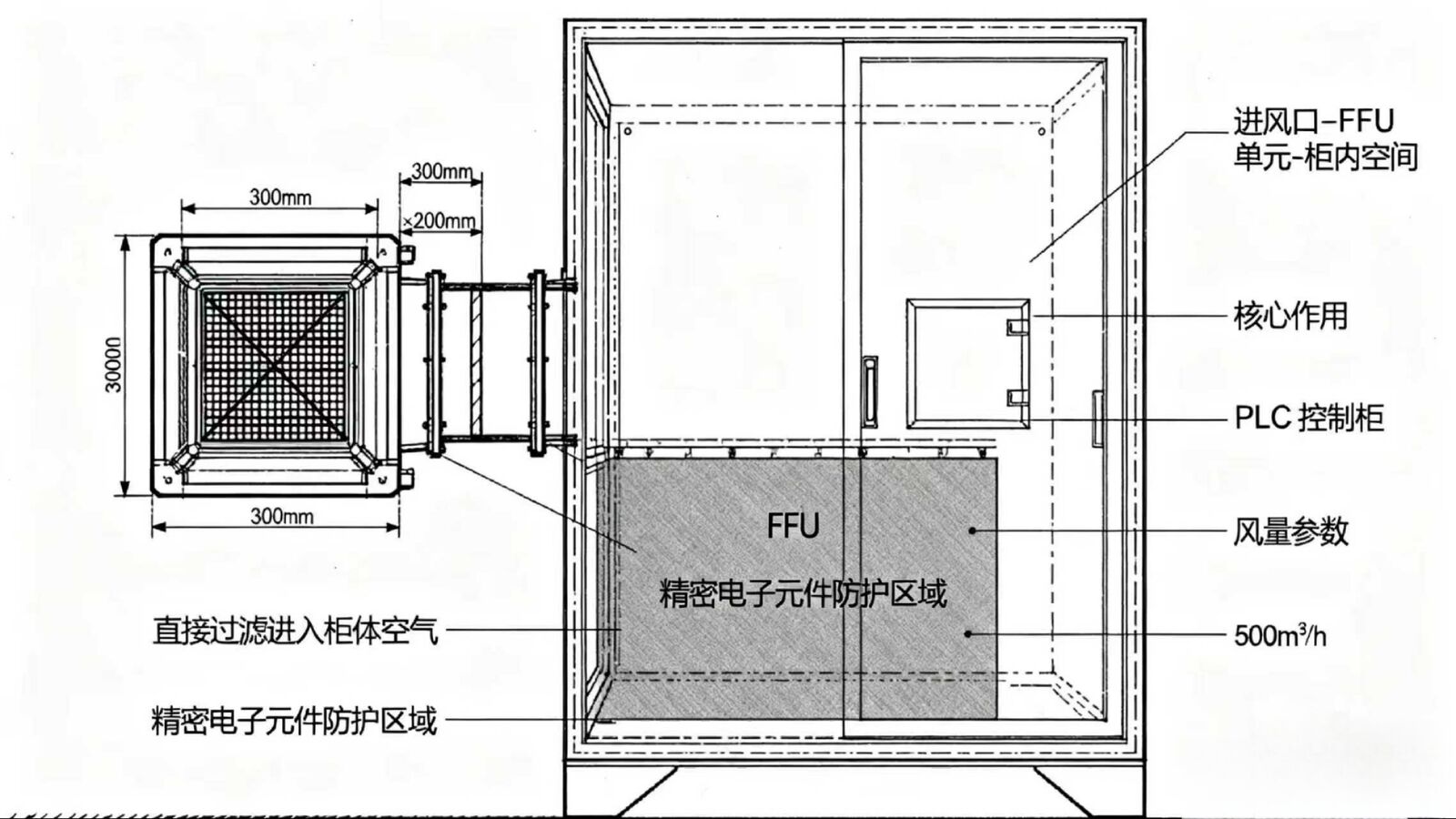

Figure 3: A dedicated Fan Filter Unit (FFU) for PLC control cabinets. It directly filters the air entering the cabinet to protect internal precision electronic components.

3. Natural Ventilation Filtration (Simple Solution)

Suitable for small low-voltage power distribution rooms or remote distribution rooms, this solution only installs G3-G4 grade dust screens at the louvered ventilation windows. It can capture large dust particles and insects but cannot protect against fine dust or corrosive gases, serving only as a basic dust-proof measure.

Positive Pressure Control: The "Key Guarantee" for Filtration Effect

Regardless of the filtration solution adopted, power distribution rooms must maintain a slight positive pressure of 5-10 Pa. By supplying a sufficient amount of clean air, external dirty air is prevented from seeping in through cable trenches and gaps in doors and windows. The positive pressure value must be monitored in real-time using pressure sensors to ensure the coordinated operation of the filtration system and ventilation system.

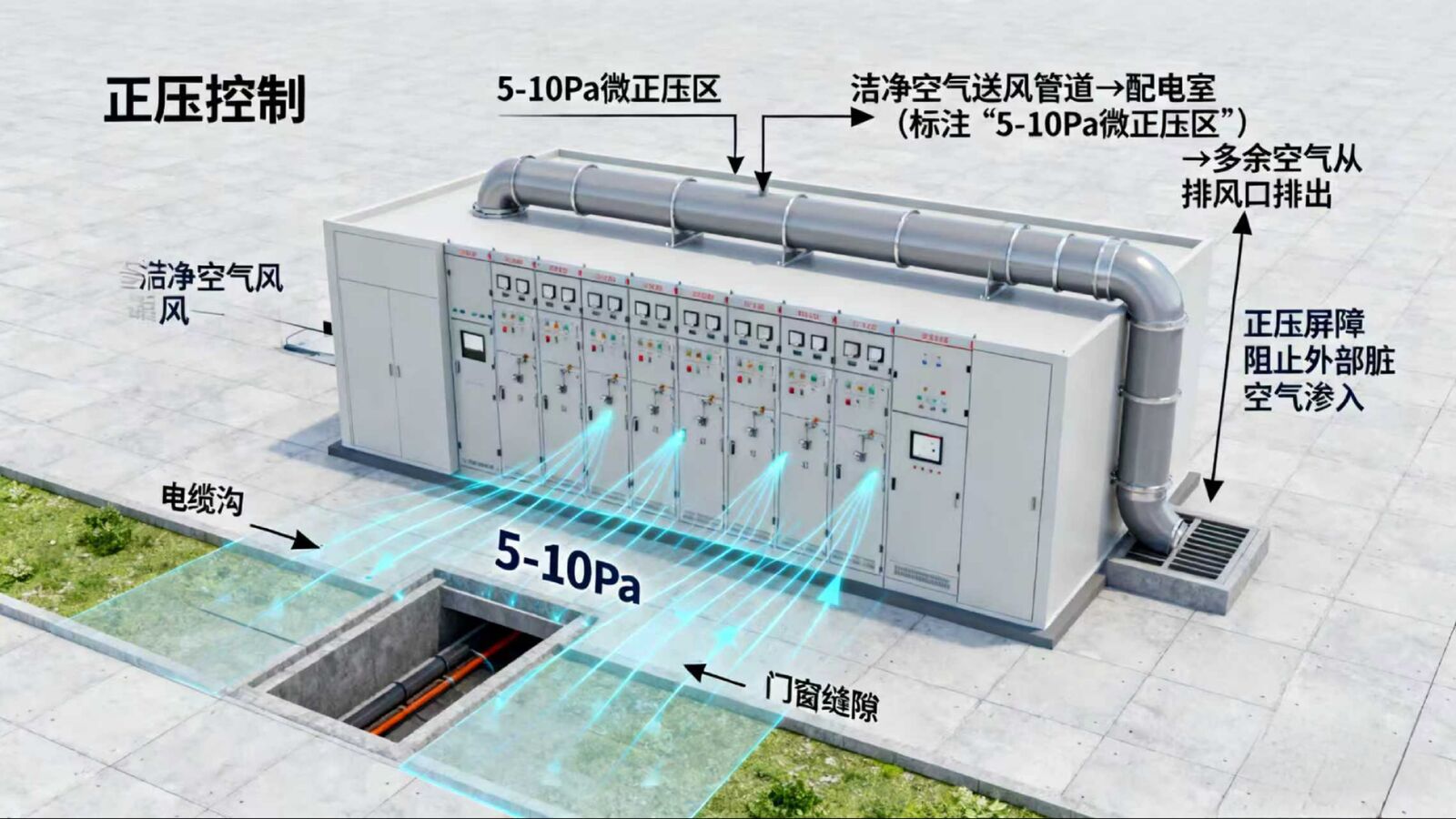

Figure 4: The principle of positive pressure control in power distribution rooms. Clean air is continuously supplied indoors to form a slight positive pressure barrier, preventing external pollutants from seeping in.

Careful Maintenance for Sustained Effectiveness

The effectiveness of air filters must be maintained through scientific monitoring and regular maintenance. The specific measures are shown in Table 3:

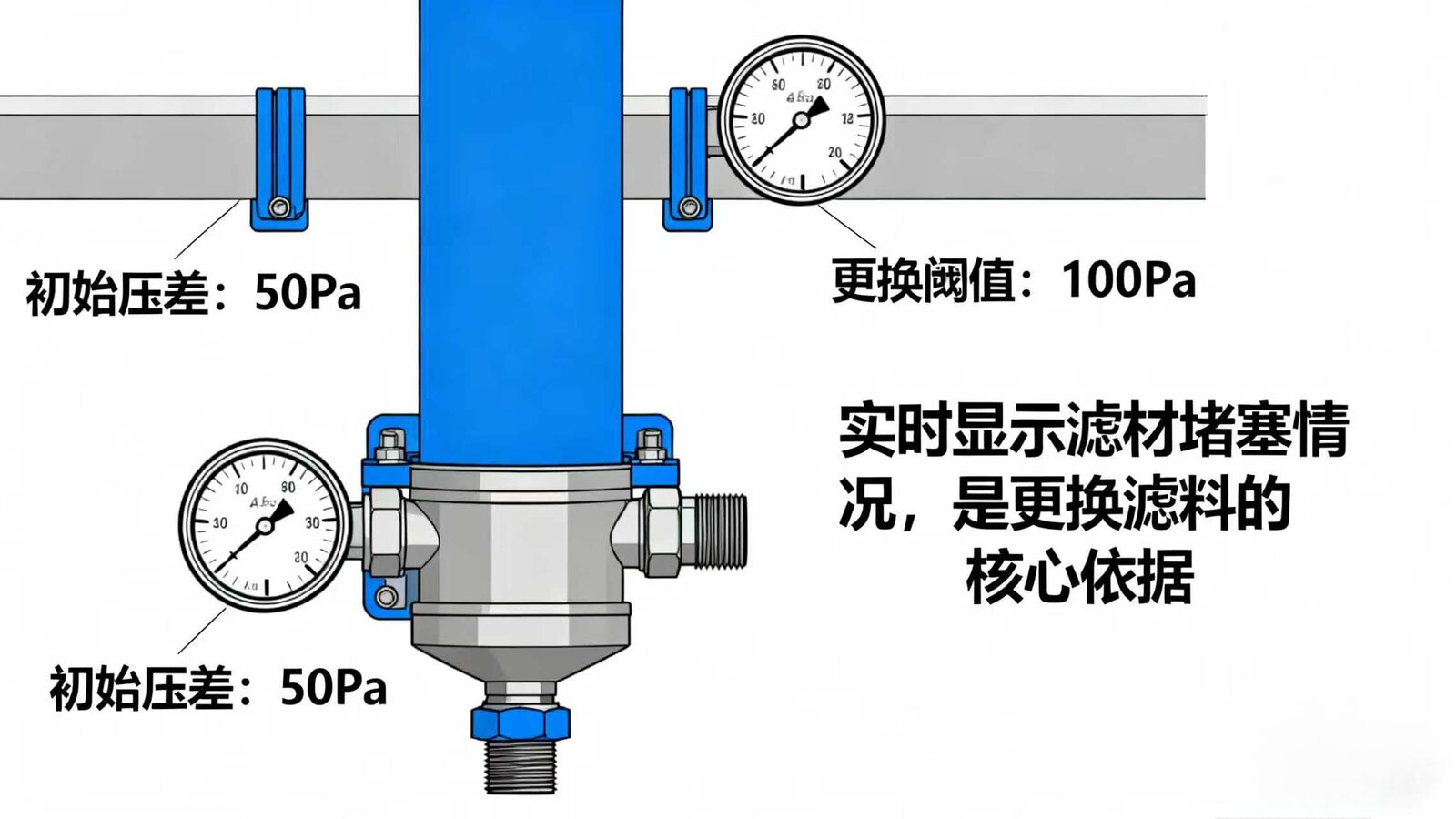

Figure 5: A differential pressure gauge installed before and after the filter. It displays filter media clogging in real-time and serves as a core basis for filter media replacement.

Significant Results and Prominent Value

Through the scientific configuration of air filtration systems, power distribution rooms can achieve multi-dimensional efficiency improvements:

• Reliability Improvement: Equipment failure rate is reduced by over 60%, significantly minimizing unexpected power outages;
• Service Life Extension: The service life of equipment such as switchgear and transformers is extended by 5-8 years, reducing replacement costs;
• Maintenance Burden Reduction: The frequency of internal equipment cleaning is reduced from once a quarter to once a year, lowering labor input;
• Compliance Guarantee: Meets standards such as IEC 62271-203 (environmental requirements for high-voltage equipment) and NEMA PG 1 (protection standards for low-voltage cabinets), avoiding compliance risks.

Challenges and Solutions: The Path Forward

Despite the significant benefits of air filtration systems, their application still faces certain challenges. The specific solutions are as follows:

Conclusion: An Indispensable Guarantee

Although air filters do not directly participate in power transmission and control, they are the "invisible shield" for the safe operation of high and low voltage power distribution rooms. Through multi-stage filtration, positive pressure coordination, and scientific maintenance, they effectively resist the erosion of particles and corrosive gases, reduce equipment failure risks, and extend service life—ultimately ensuring the continuity and reliability of power systems. Despite challenges such as cost and maintenance, compared with the huge losses caused by unexpected shutdowns, the investment in air filtration systems is undoubtedly a "cost-effective preventive investment."

In the future, with the development of intelligent monitoring technology, air filtration systems will further upgrade toward "automation and precision"—for example, using AI algorithms to predict filter media life and automatically adjusting filtration levels based on real-time air quality—providing more efficient and economical protection for high and low voltage power distribution rooms.
